The VDO A2C59510876 illuminated ViewLine hour counter is a 52 mm engine-monitoring instrument designed to track operating time from 0 to 99,999.9 hours for maintenance-interval planning. Built for 12–24 V DC systems with an ignition-switched positive input, it features a black dial with amber backlighting, a red LED warning light, and an anti-fog double-plastic lens, with front protection rated to IP67.
- Description
- Ask a Question
-

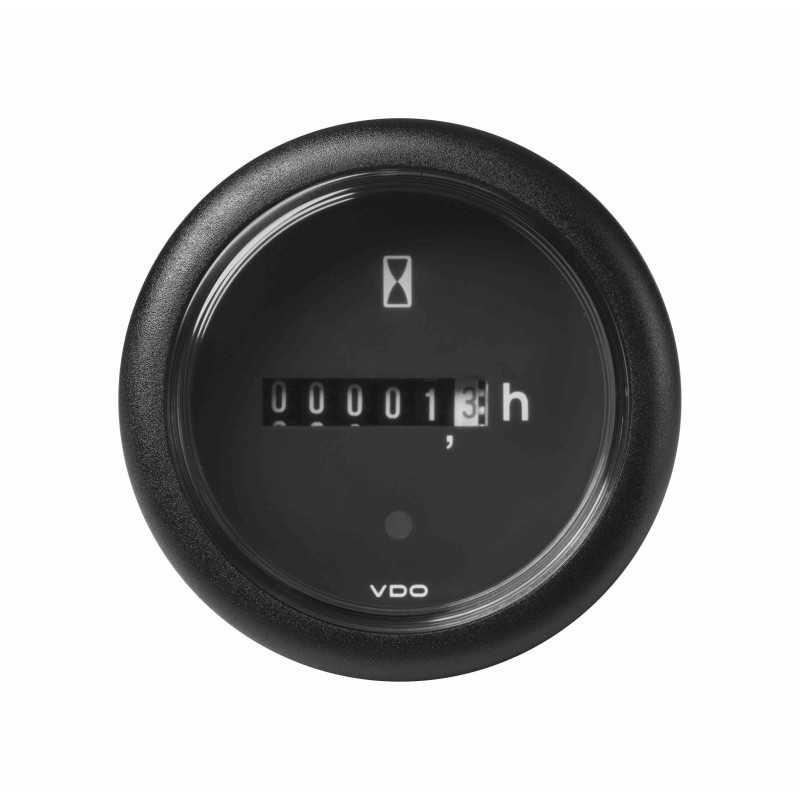

Illuminated ViewLine Hour Counter in 52 mm Black
The VDO A2C59510876 is a Veratron ViewLine hour counter for engine monitoring, built to record running hours to support service scheduling and maintenance intervals. It mounts in a 52 mm panel opening and runs on 12–24 V DC, using an ignition-switched positive input to count operating time. A black dial with amber LED illumination, a red LED warning light, and an anti-fog double-plastic lens make it a robust choice for instrument panels.
Compatibility
- Veratron Engine Monitoring
- Veratron ViewLine OEM-Bulk Series
Technical Specifications
Part Number A2C59510876 Category Hour Counters Measurement Range 0–99,999.9 h Operating Voltage 12–24 V DC Signal Type Analog Input Positive via ignition switch Installation Diameter / Hole Size 52 mm (2 1/16 in) Mounting Central spinlock nut, 52 mm Dial Color Black Dial Illumination Amber LED, not dimmable Lens Double plastic, anti-fog Warning Light Red LED, controlled via positive and negative IP Rating (Front) IP67 (IEC 60529) IP Rating (Rear) IP52 (IEC 60529) Data Connector Type Tyco 8-pin MQS Power Supply Connector Type Tyco 8-pin MQS EAN 7640178722576 Weight 0.32 kg Packaging OEM bulk pack, 10 pieces
Product Details
- Brand: VDO
- Product Line: Veratron ViewLine
- Instrument Type: Illuminated hour counter
- Primary Use: Tracking engine operating hours for maintenance intervals
- Bezel: Optional, interchangeable clip-on (ordered separately)
- Cable: Ordered separately
Features
- Accurately records operating time to support service and overhaul planning
- Ignition-switched input ensures hours are logged only when the system is running
- High-visibility amber backlight and integrated red warning LED for clear status indication
- Anti-fog lens and sealed front face for dependable performance in demanding installations
-
