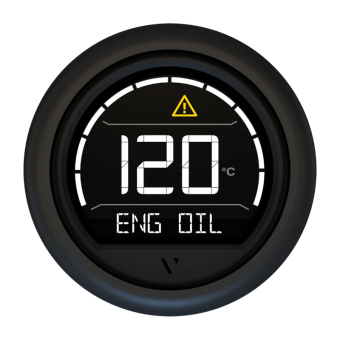

The VDO B00205702 VL Digital multifunction instrument is a 52 mm, black round-bezel display designed for flexible engine and vehicle monitoring in 12/24 V installations. With a sunlight-readable color display, programmable alarm text and warning LED, and support for SAE J1939 CAN plus a programmable resistive analog input, it lets you configure a single function such as coolant temperature, oil pressure, boost pressure, battery data, tank levels, and more for clear, dependable at-a-glance readings.
- Description
- Ask a Question
-

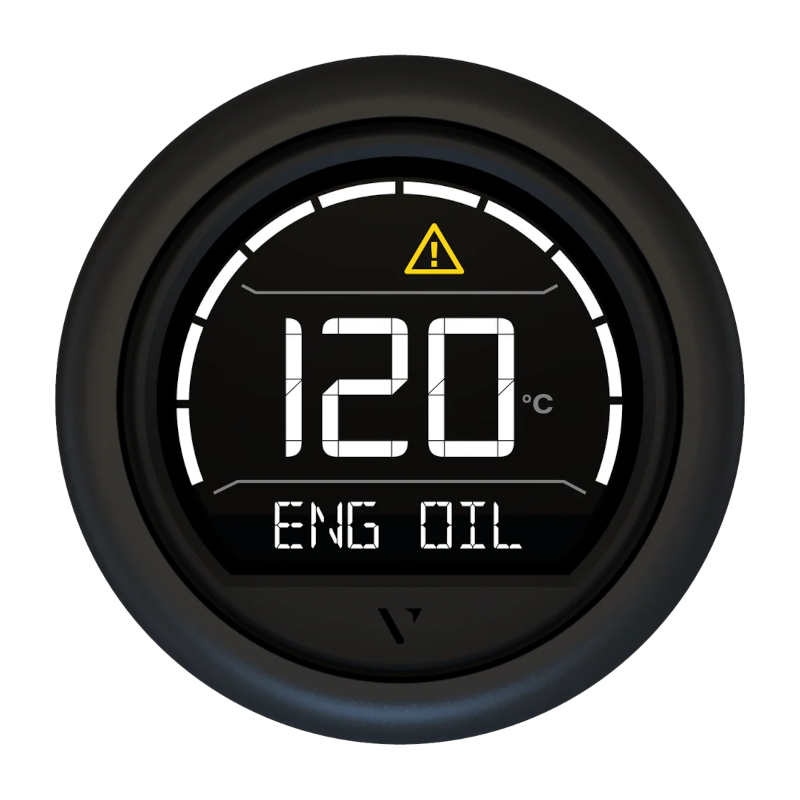

VL Digital 52 mm Multifunction Display With Black Round Bezel
The VDO B00205702 (Veratron VL Digital series) is a compact multifunction programmable instrument built for modern engine and vehicle monitoring. Its sunlight-readable color display, customizable alarm text, and programmable warning output help keep critical operating values visible and actionable. The instrument supports SAE J1939 CAN communication and a programmable resistive analog input, making it a versatile choice for many monitoring configurations.
Compatibility
- 12 V electrical systems
- 24 V electrical systems
- SAE J1939 CAN networks (configurable baud rate)
- Resistive analog sender inputs (0–400 ohm programmable)
Features
- Sunlight-readable IBN color display for clear viewing in bright conditions
- Supports one selectable configuration per instrument (engine, battery, vehicle, tanks, or weather-related readings)
- Custom alarm text plus a programmable red warning LED for attention-grabbing alerts
- Programmable alarm output up to 500 mA with programmable hysteresis
- AirWave-ready wireless interface for configuration via app
- Interchangeable black round bezel (clip-on)
Supported Configurations (One per Instrument)
- Boost pressure
- Coolant pressure
- Coolant temperature
- Air intake temperature
- Engine load
- Exhaust temperature
- Engine oil temperature
- Engine oil pressure
- Transmission oil temperature
- Transmission oil pressure
- Battery voltage
- Ammeter
- Battery state of charge
- Energy consumption
- Remaining range
- Alternator potential
- Outside air temperature
- Brake pressure
- Hydraulic oil temperature
- Hydraulic oil pressure
- PTO 1
- PTO 2
- Fuel level
- Fresh water level
- DEF and AdBlue level
- Fuel temperature
- Fuel pressure
Technical Specifications
Color Black Series Veratron VL Digital Category Multifunction instruments Panel hole size 52 mm (2 1/16 inch) Installation diameter 53 mm +/- 0.5 mm Installation depth 58.5 mm +/- 1 mm Locking height with spinlock nut 0.5 mm to 20 mm Flush mount Optional kit A2C59510864 Screen dimension 37 mm Operating voltage 8 to 32 V DC Nominal voltage 12 V / 24 V Current consumption < 175 mA including warning LED Reverse polarity protection Yes (1 minute) Short-circuit protection Yes (1 minute) Operating temperature -20°C to +70°C Storage temperature -30°C to +80°C Front protection rating IP67 (in nominal position) Rear protection rating IP52 (in nominal position) Analog inputs 1 x resistive Analog signal range 0 to 400 ohm (programmable) Outputs 1 x alarm 500 mA with programmable hysteresis CAN port SAE J1939 protocol with configurable baud rate Wireless interface AirWave ready for configuration via app Display IBN color display Lens PMMA single lens Mounting Spinlock nut; panel thickness 0.5 mm to 20 mm Connector 8-pin TE MQS connector system Weight 0.25 kg EAN 7640190290909
Product Details
- Brand: VDO (Veratron VL Digital)
- Part Number: B00205702
- Instrument Type: Digital multifunction instrument
- Bezel: Round, black, interchangeable
- Application: Engine monitoring
- Successor: ViewLine 52 mm instruments
Retail Package Contents
- VL Digital black multifunction instrument B00205702
- Spinlock nut
- Black round bezel (interchangeable)
- Adapter cable with 8-pin Hirschmann MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
- No sensors included
-
