The Veratron VL Digital multifunction tachometer VDO B00205802 is a sunlight-readable, black-bezel 85 mm instrument built for Veratron engine monitoring, combining tachometer, speedometer, and power display functions in one round gauge. Designed for flexible installation with an 80 to 85 mm panel hole and Spinlock-nut mounting, it supports CAN bus SAE J1939 and analog tachometer impulse inputs to present key engine, battery, vehicle, tank, and weather pages, making it a modern successor to ViewLine tachometer and speedometer instruments.
- Description
- Ask a Question
-

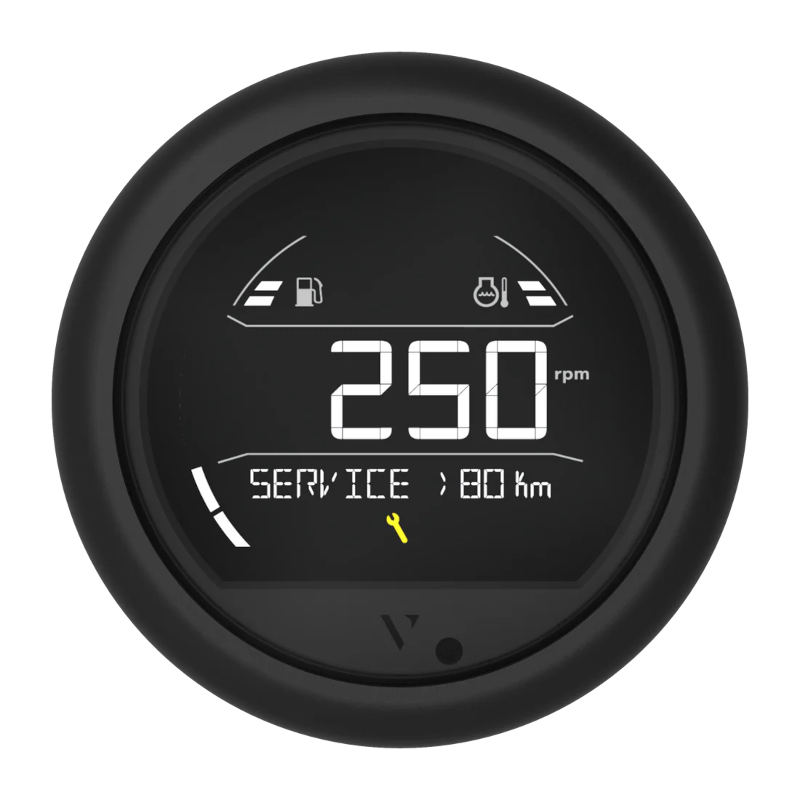

Veratron VL Digital Multifunction Tachometer With Black Round Bezel
The VDO B00205802 Veratron VL Digital is a compact, panel-mounted multifunction instrument that brings RPM, speed, and extended engine-monitoring pages to a modern sunlight-readable color display. Built around a round, interchangeable black bezel, it is designed for clean dashboard integration and flexible setup via CAN bus SAE J1939 and analog inputs, making it a strong upgrade path as the successor to ViewLine tachometer and speedometer products.
Compatibility
- Veratron engine monitoring systems
- CAN bus systems using SAE J1939 (configurable baud rate)
- Analog tachometer impulse signal input
- Frequency input with support of a Hall effect sensor
- AirWave-ready wireless configuration via app
Technical Specifications
Part Number B00205802 Series Veratron VL Digital Category Digital Multifunction Tachometers Color Black Bezel Round black (interchangeable, clip-on) Display IBN color display, sunlight readable Functions Listed Tachometer / Speedometer / Power meter Range Listed 0 to 8,000 RPM / 99.9 mph or km/h Tachometer Measurement Range Listed 0 to 3,000 RPM Panel Hole Diameter 80 to 85 mm (3 1/8 to 3 3/8 in) Outside Diameter 93 mm (3 2/3 in) Installation Depth 49 mm ± 1 mm Mounting Spinlock nut; panel thickness 0.5 mm to 20 mm Operating Voltage 8 to 32 V DC Nominal Voltage 12 / 24 V Current Consumption < 175 mA including warning LED Reverse Polarity Protection Yes (1 minute) Short Circuit Protection Yes (1 minute) Protection Class Front IP67 (in nominal position) Protection Class Rear IP52 (in nominal position) Operating Temperature -20°C to +70°C Storage Temperature -30°C to +80°C Connector 8/14-pin TE MQS connector system EAN 7640190290954 Weight 0.25 kg
Product Details
- Instrument Type: Digital multifunction tachometer
- Application: Veratron engine monitoring
- Communication: CAN bus J1939 and analog
- Warning Light: Red LED, programmable
- Lens: PMMA single lens
- Flush Mount: Optional kit A2C59510864
Supported Pages and Measurements
- Engine: RPM, Power, Gear Position, Coolant Temperature, Fuel Rate, Engine Hours, Engine Load, Engine Oil Pressure
- Battery: Battery Voltage, Ammeter, Battery State of Charge, Energy Consumption, Remaining Range, Alternator Potential
- Vehicle: Clock, Speed, Odometer, Trip Time A, Trip Distance A, Trip Time B, Trip Distance B, PTO 1 and PTO 2
- Tanks: Fuel Level, Fresh Water Level, DEF level, Fuel Pressure
- Weather: Outside Air Temperature
Power meter is noted as not yet available in current firmware.
Features
- Clear, sunlight-readable color display for quick RPM and system-status checks
- Designed for modern installations with CAN bus J1939 support and configurable communication
- Spinlock-nut mounting supports a wide range of panel thicknesses for secure fitment
- IP-rated front and rear protection for dependable performance in demanding environments
- Interchangeable bezel design supports consistent dashboard styling
Retail Package Contents
- Veratron VL Digital Black B00205802 multifunction instrument
- Spinlock nut
- Round black bezel (interchangeable)
- Adapter cable with 8- and 14-pin Hirschmann MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
- No sensors included
-
