The VDO 360-081-029-020C pressure sensing unit provides stable, accurate pressure monitoring from 0 to 10 bar for oil, fuel, and air systems across automotive, marine, and industrial use. Designed for dependable engine monitoring, it uses a single-pole common-ground signal with a 10–184 Ohm resistance range and operates on 6–24 V DC. A 1/4-18 NPTF thread supports secure installation, while the robust design tolerates brief pressure spikes up to 30 bar and works reliably from -25°C to +100°C, with optional makepoint switch support for added safety functions.
- Description
- Ask a Question
-
0–10 Bar Pressure Sensor with 1/4-18 NPTF Connection

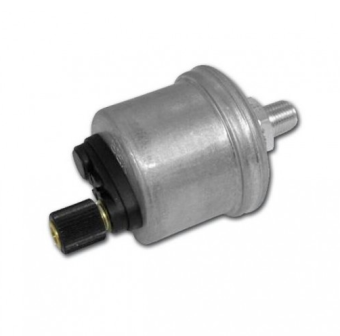

The VDO 360-081-029-020C is a pressure sender built for precise measurement in oil, fuel, and air pressure systems. Commonly used in engine monitoring setups, it provides a stable, analog signal (single-pole common ground) for instrumentation and monitoring circuits in automotive, marine, and industrial environments.
Features
- Measures system pressure from 0 to 10 bar (0–145 PSI / 0–1000 kPa) for accurate monitoring
- Single-pole common-ground signal design for stable electrical performance
- Designed for harsh conditions with -25°C to +100°C operating capability
- Handles brief overpressure events up to 30 bar for 2 seconds
- Optional safety functionality supported via VDO A2C59510886 makepoint switch
Compatibility
- Automotive applications
- Marine applications
- Industrial applications
Product Details
- Brand: VDO
- Part Number: 360-081-029-020C
- Component Type: Pressure Sender
- Functionality: Engine oil pressure monitoring
- Pressure Media: Oil, Fuel, Air
- Connector: M4 plastic knurled nut
- Warning Contact: None
- Optional Warning Contact: VDO A2C59510886 makepoint switch
- Alternative Notation: 360 081 029 020C; 360/81/29/20C
- EAN Code: 4103590690753
- HS Code: 90269000
- Weight: 0.08 kg
- Country of Origin: Germany
Technical Specifications
Pressure Measuring Range 0–10 bar (0–145 PSI / 0–1000 kPa) Maximum Pressure 30 bar (2 seconds) Thread 1/4-18 NPTF Thread Length (L2) 15.3 mm Total Length Thread + Nut (L1) 23.8 mm Recommended Torque 60 Nm Operating Temperature Range -25°C to +100°C Operating Voltage 6–24 V DC Resistance Range 10–184 Ohm Signal Type Single-pole common ground Type of Connection A Catalog Reference VDO 2014 Vehicle Electronics Catalog, pages 121–122 -
