ID
1177016
$ 198.61
1-2 weeks delivery time
-
+

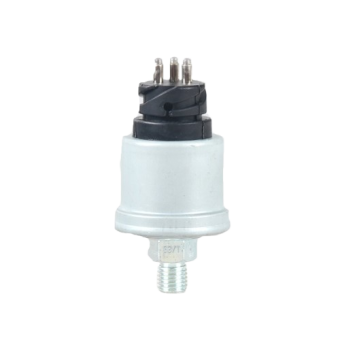

The VDO 360-081-063-001C pressure sender is a high-performance monitoring sensor for automotive engine instrumentation, designed to measure pressure from 0 to 10 bar with a stable 10–184 ohm signal for compatible gauges and monitoring systems. Built with an M12 x 1.5 male thread and a Bosch push-on connector (2.8 x 0.8 mm), it supports common pressure-media uses such as oil, fuel, and air, while the integrated warning contact (5.20 bar ± 0.30 bar) adds an extra safety layer by triggering an alert as pressure drops.
- Description
- Ask a Question
-
Automotive Pressure Monitoring Sender 0–10 Bar, M12 x 1.5
The VDO 360-081-063-001C is an analog pressure sender engineered for reliable pressure monitoring in automotive engine systems. Designed to work with VDO engine monitoring and gauge setups, it converts pressure into a stable resistance signal for accurate display, and it also includes a dedicated warning contact to support protective alerts when pressure falls.
Compatibility
- VDO engine monitoring systems
- Engine oil pressure monitoring
- Fuel pressure monitoring
- Air pressure monitoring
- Pressure media: oil
- Pressure media: fuel
- Pressure media: air
Product Details
- Brand: VDO
- Part Number: 360-081-063-001C
- Component Type: Pressure Sender with Warning Contact
- Signal Type: Analog (10–184 ohm), dual-pole insulated return
- Connector Type: Bosch push-on connector 2.8 x 0.8 mm
- Country of Origin: Germany
- Packaging: VDO Sensor retail package
Features
- Measures 0–10 bar for dependable system and instrument monitoring
- Integrated warning contact helps support rapid response to pressure loss
- M12 x 1.5 thread for secure installation in compatible ports
- Designed for demanding environments with a specified operating temperature range
Technical Specifications
Pressure Measuring Range 0–10 bar (0–145 PSI / 0–1000 kPa) Maximum Pressure 30 bar for 2 seconds Warning Contact 5.20 bar ± 0.30 bar (closes with falling pressure) Warning Contact Switching Capacity Maximum 5 W, non-inductive Thread M12 x 1.5 male Thread Length 12 mm Length with Nut 20.5 mm Installation Torque 40 Nm Operating Voltage 6–24 V DC Resistance Range 10–184 ohm Operating Temperature Range -25°C to +100°C Connector Bosch push-on connector 2.8 x 0.8 mm EAN 4103590691538 HS Code 90269000 Weight 0.12 kg -
