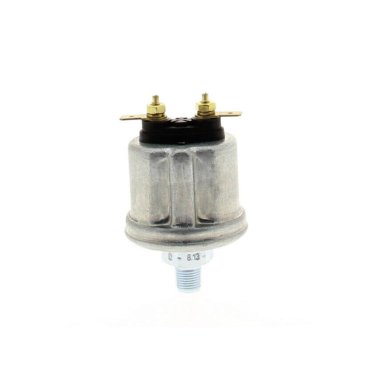

The VDO 362-081-001-001K dual-station pressure sender is a 0–5 bar monitoring sensor built for dependable low-pressure readings in engine monitoring systems. Designed for oil, fuel, or air pressure measurement, it uses a 2-pole insulated return signal with a 5–90 ohm dual resistance output to support two gauges (including flybridge dual-gauge setups). With a 1/8-27 NPTF thread, 6–24 V DC operation, and no warning contact, it’s a robust choice for accurate, steady pressure indication.
- Description
- Ask a Question
-
Dual-Station 0–5 Bar Pressure Sender with 1/8-27 NPTF
The VDO 362-081-001-001K is a DS pressure sender engineered for low-pressure measurement and stable signal delivery in engine monitoring installations. Built around a 2-pole insulated return design with 5–90 ohm dual output, it is especially well-suited for dual-gauge configurations, including applications where two stations need the same pressure reading.
Compatibility
- VDO Engine Monitoring Systems
- Dual-Station Installations for Two Gauges on Flybridge
Technical Specifications

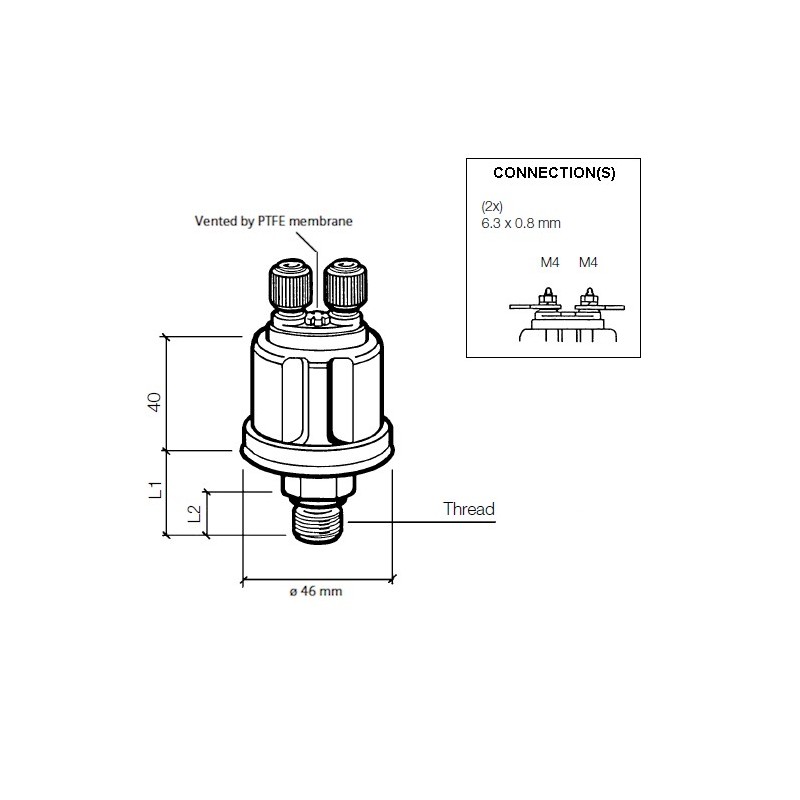

Part Number 362-081-001-001K Pressure Measuring Range 0–5 bar (0–72.5 PSI, 0–500 kPa) Maximum Pressure 30 bar for 2 seconds Thread 1/8-27 NPTF Length of Thread + Nut (L1) 19.5 mm Thread Length (L2) 11 mm Tightening Torque 30 Nm Operating Temperature -25 °C to +100 °C Pressure Medium Oil, Fuel, Air Operating Voltage 6–24 V DC Resistance Range 5–90 ohm Signal Type Dual-pole insulated return Warning Contact None Optional Warning Contact VDO A2C59510886 Makepoint Switch Pressure Sender Connector M4 AMP Male 6.3 x 0.8 mm Type of Connection B EAN Code 4103590949806 HS Code 90269000 Weight 0.13 kg Country of Origin Germany
Product Details
- Brand: VDO
- Component Type: DS pressure sender (dual-station)
- Functionality: Engine oil pressure monitoring
- Special Application: For 2 gauges on flybridge
- Communication: Analog
- Category: Pressure senders dual station
Features
- Accurate 0–5 bar pressure measurement for low-pressure systems
- Dual output (5–90 ohm) supports two gauges from one sender
- 2-pole insulated return design suited to dual-station instrumentation wiring
- 1/8-27 NPTF thread for secure installation in common pressure ports
- Compatible with oil, fuel, and air pressure monitoring applications
-
