ID
1177352
$ 133.98
1-2 weeks delivery time
-
+

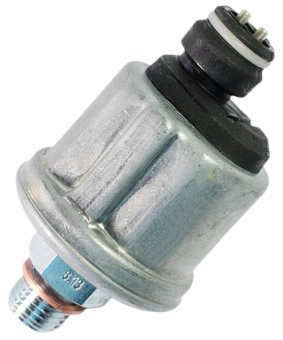

The VDO 360-081-062-004A pressure-sensing sender provides stable 0-5 bar monitoring for oil, fuel, and air systems in automotive and industrial engine instrumentation. Built with an M14 x 1.5 male thread and Bosch push-on connectors, it supplies an analog 10-184 ohm signal for VDO engine monitoring setups, while the integrated 1.00 bar warning contact (±0.20 bar) helps deliver early low-pressure alerts to protect engines and equipment.
- Description
- Ask a Question
-
0-5 Bar Pressure Sender With Warning Contact and M14 x 1.5 Thread
The VDO 360-081-062-004A is a precision pressure sender for dependable pressure monitoring across oil, fuel, and air circuits. Designed for automotive and industrial engine instrumentation, it delivers an analog 10-184 ohm signal compatible with VDO engine monitoring systems and includes a low-pressure warning contact that closes as pressure falls to support fast operator alerts.
Compatibility
- Automotive oil pressure monitoring systems (0-5 bar range)
- Automotive fuel pressure monitoring systems (0-5 bar range)
- Automotive air pressure monitoring systems (0-5 bar range)
- Industrial pressure monitoring applications for oil, fuel, and air (0-5 bar range)
- VDO engine monitoring systems using an analog 10-184 ohm sender signal
Product Details
- Brand: VDO
- Part Number: 360-081-062-004A
- Component Type: Pressure Sender
- Functionality: Engine oil pressure monitoring
- Pressure Media: Oil, Fuel, Air
- Signal Type: Analog, single-pole common ground
- Packaging: VDO sensor retail package
Features
- Measures pressure from 0 to 5 bar for accurate system monitoring
- Warning contact at 1.00 bar ± 0.20 bar closes with falling pressure for early low-pressure indication
- M14 x 1.5 male thread supports secure installation in compatible ports
- Bosch push-on connectors (2.8 x 0.8 mm) for straightforward electrical connection
- Engineered for reliable operation across -25°C to +100°C
Technical Specifications
Pressure Range 0 - 5 bar (0 - 72.5 PSI, 0 - 500 kPa) Maximum Pressure 30 bar during 2 seconds Warning Contact Setpoint 1.00 bar ± 0.20 bar (closes with falling pressure) Warning Contact Switching Capacity 5 W non-inductive Operating Voltage 6 - 24 V DC Signal Output Analog 10 - 184 ohm Sensor Signal Single-pole common ground Thread M14 x 1.5 male Thread Length plus Nut (L1) 20.5 mm Thread Length (L2) 12 mm Installation Torque 60 Nm Operating Temperature -25°C to +100°C Connector Type Bosch push-on connector (2.8 x 0.8 mm) EAN Code 4103590691514 HS Code 90269000 Weight 0.12 kg Country of Origin Germany Alternative Notation 360 081 062 004A; 360/81/62/4A -
