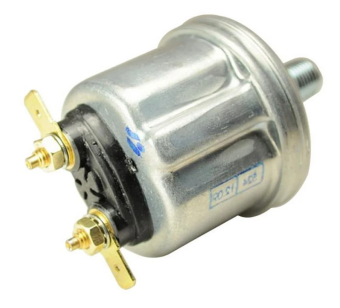

The VDO 362-081-001-002K dual-station pressure sender is a precision sensor for engine monitoring systems, measuring 0–10 bar (0–145 PSI, 0–1000 kPa) for oil, fuel, and air pressure in automotive, industrial, and marine installations. Built with a secure 1/8-27 NPTF thread and a dual-pole insulated return signal, it provides stable, accurate readings for VDO instrumentation, including flybridge setups running two gauges, with a 5–90 Ohm resistance range and 6–24 V DC operation.
- Description
- Ask a Question
-
Dual-Station Pressure Sender 0–10 Bar for Engine Monitoring
The VDO 362-081-001-002K is a DS (dual-station) pressure sender engineered to deliver accurate pressure feedback for engine monitoring. Designed for oil, fuel, and air pressure measurement, it supports clear, consistent readings on VDO gauges and monitoring systems, including installations that use two gauges in a flybridge setup. A 1/8-27 NPTF threaded connection helps ensure a secure, leak-resistant fit, while the dual-pole insulated return signal improves measurement stability.
Compatibility
- Automotive pressure monitoring (oil, fuel, and air)
- Industrial pressure monitoring (oil, fuel, and air)
- Marine pressure monitoring (oil, fuel, and air)
- VDO engine monitoring systems
- Dual-gauge flybridge installations
Product Details
- Brand: VDO
- Part Number: 362-081-001-002K
- Component Type: DS pressure sender (dual station)
- Typical Use: Engine oil, fuel, and air pressure measurement
- Warning Contact: None (optional VDO A2C59510886 make-point switch)
Technical Specifications
Pressure Range 0–10 bar; 0–145 PSI; 0–1000 kPa Maximum Pressure 30 bar for 2 seconds Operating Temperature -25°C to +100°C Pressure Media Oil; fuel; air Thread 1/8-27 NPTF (male) Thread Length L2: 11 mm Length Thread + Nut L1: 19.5 mm Installation Torque 30 Nm Operating Voltage 6–24 V DC Resistance Range 5–90 Ohm (dual) Sensor Signal Dual-pole insulated return Communication Analog Connector M4 AMP male flat terminal 6.3 x 0.8 mm Type of Connection B Category Dual-station pressure senders Country of Origin Germany EAN Code 4103590691583 HS Code 90269000 Weight 0.12 kg / 0.15 kg Reference VDO 2014 Vehicle Electronics Catalog, pages 126–127; VDO EN/DU pressure sender tables, datasheet table 4
Features
- Measures pressure accurately across the 0–10 bar range for dependable monitoring.
- Dual-station output supports installations that need readings on two gauges (including flybridge layouts).
- Dual-pole insulated return helps maintain stable signal transmission in demanding electrical environments.
- Built to handle transient spikes up to 30 bar for 2 seconds and operate from -25°C to +100°C.
- Designed for use with VDO engine monitoring instrumentation; optional warning functionality can be added with VDO A2C59510886 make-point switch.
-
