ID
1128622
$ 146.22
1-2 weeks delivery time
-
+

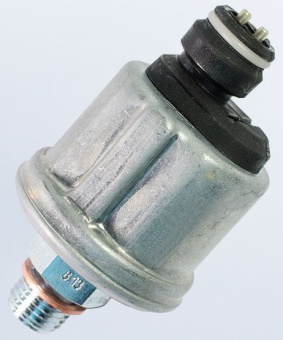

The VDO 360-081-062-005A pressure sender is a versatile engine-monitoring sensor that measures 0–10 bar (0–145 PSI / 0–1000 kPa) and outputs an analog 10–184 ohm signal for VDO instrumentation on 6–24 V DC systems. Built for oil pressure monitoring and other pressure circuits using oil, fuel, or air, it also includes a 3.00 bar warning contact that closes as pressure falls for dependable alarm functionality. An M14 x 1.5 male thread with Bosch push-on connectors (2.8 x 0.8 mm) supports straightforward installation and reliable electrical connection.
- Description
- Ask a Question
-
0–10 Bar Pressure Sender with Warning Contact and M14 Thread
The VDO 360-081-062-005A is an analog pressure sender for VDO engine monitoring, designed to provide stable pressure readings for instrumentation and warning circuits. With a 0–10 bar measuring range and an integrated warning contact that triggers on falling pressure, it is well suited to engine oil pressure monitoring as well as other systems using oil, fuel, or air as the pressure medium.
Compatibility
- Oil pressure circuits
- Fuel pressure circuits
- Air pressure circuits
- 6–24 V DC analog gauge systems using 10–184 ohm sender signals (common ground)
- Wiring with Bosch push-on connectors 2.8 x 0.8 mm
Product Details
- Brand: VDO
- Part Number: 360-081-062-005A
- Component Type: Pressure sender with warning contact
- Application: VDO engine monitoring (engine oil pressure)
- Pressure media: Oil, fuel, air
- Country of origin: Germany
- EAN Code: 4103590691521
- HS Code: 90269000
- Weight: 0.12 kg
- Alternative notation: 360 081 062 005A; 360/81/62/5A
Features
- Measures pressure from 0 to 10 bar for accurate gauge indication
- Analog output with 10–184 ohm resistance for VDO instrumentation
- Warning contact set at 3.00 bar ± 0.30 bar for pressure-alert signaling
- Single-pole signal with common ground for straightforward integration
- Robust design rated for 30 bar maximum pressure during 2 seconds
Technical Specifications
Pressure measuring range 0–10 bar; 0–145 PSI; 0–1000 kPa Maximum pressure 30 bar during 2 seconds Thread M14 x 1.5 male Length thread + nut (L1) 20.5 mm Thread length (L2) 12 mm Installation torque 60 Nm Operating temperature -25 °C to +100 °C Operating voltage 6–24 V DC Resistor range 10–184 ohm Pressure sensor signal Single-pole, common ground Warning contact 3.00 bar ± 0.30 bar; closes with falling pressure Warning contact switching capacity Maximum 5 watt, non-inductive Pressure sender connector Bosch push-on connector 2.8 x 0.8 mm Warning contact connector Bosch push-on connector 2.8 x 0.8 mm Type of connection N -
