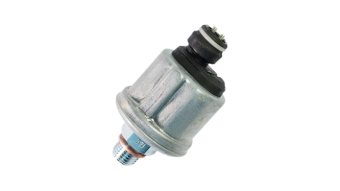

The VDO 360-081-062-002A pressure sensing unit provides accurate 0–5 bar monitoring for engine oil, fuel, and air pressure in automotive, marine, and industrial engine monitoring systems. Designed with an M14 x 1.5 thread for secure installation, it runs on 6–24 V DC and delivers an analog resistance signal (10–184 ohm) with a single-pole common ground. A built-in warning contact (0.40 bar ± 0.20 bar) adds an extra layer of protection by triggering an alert during low-pressure conditions, while Bosch push-on connectors simplify integration into existing wiring looms.
- Description
- Ask a Question
-
Engine Pressure Sender With Warning Contact (0–5 Bar)
The VDO 360-081-062-002A is a pressure sender for dependable engine monitoring, designed to measure oil, fuel, and air pressure across a 0–5 bar range. Used in instrumentation and protection circuits, it supplies an analog signal for gauges or monitoring modules and includes a low-pressure warning contact to help safeguard engines under demanding operating conditions.
Compatibility
- Automotive engine systems (oil, fuel, and air pressure monitoring)
- Marine engine systems (oil, fuel, and air pressure monitoring)
- Industrial engine systems (oil, fuel, and air pressure monitoring)
- Construction equipment engine monitoring installations
- Heavy machinery engine monitoring installations
- OEM engine monitoring systems requiring an analog resistance-output sender
Product Details
- Brand: VDO
- Part Number: 360-081-062-002A
- Component Type: Pressure Sender
- Pressure Media: Oil, fuel, air
- Connector Style: Bosch push-on connector (sender and warning contact)
- Packaging: VDO Sensor retail package
Features
- Measures pressure from 0 to 5 bar for stable engine diagnostics and gauge readings
- Integrated warning contact supports fast low-pressure indication for engine protection
- M14 x 1.5 male thread for secure mounting in engine galleries and pressure ports
- Analog resistance output (10–184 ohm) suited to common VDO-style instrumentation
- Designed for mixed-duty environments across automotive, marine, and industrial applications
Technical Specifications
Pressure Measuring Range 0 - 5 Bar (0 - 72.5 PSI, 0 - 500 KPa) Maximum Pressure 30 Bar for 2 seconds Warning Contact 0.40 Bar ± 0.20 Bar Warning Contact Switching Capacity Maximum 5 Watt (non-inductive) Warning Contact Behavior Closes with falling pressure Operating Voltage 6 - 24 V DC Signal Output (Resistance Range) 10 - 184 Ohm Sensor Signal Single-pole common ground Thread M14 x 1.5 male Thread Length (L2) 12 mm Length With Nut (L1) 20.5 mm Installation Torque 60 Nm Operating Temperature -25°C to +100°C Sender Connector Bosch push-on connector 2.8 x 0.8 mm Warning Contact Connector Bosch push-on connector 2.8 x 0.8 mm EAN Code 4103590691491 Weight 0.12 kg Country of Origin Germany Alternative Notation 360 081 062 002A; 360/81/62/2A HS Code 90269000 -
