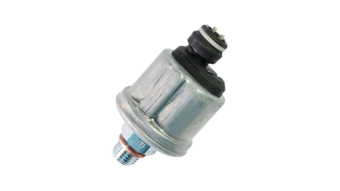

VDO 360-081-062-003C - Pressure Sender 0-10 Bar - M14

VDO 360-081-062-003C Pressure Sender 0-10 Bar - M14

The VDO 360-081-062-003C Pressure Sender is a high-performance sensor designed for accurate pressure measurement in automotive, industrial, and marine applications. With a pressure range of 0 to 10 Bar (0 - 145 PSI, 0 - 1000 KPa), it ensures reliable monitoring of engine oil pressure, fuel, and air systems. This sensor features an M14 x 1.5 thread for easy installation and is built to operate under extreme conditions, with an operating temperature range from -25°C to +100°C. It offers precise and consistent analog output with a resistance range of 10 - 184 Ohm and a single-pole common ground sensor signal.

Key Features

• Pressure range: 0 to 10 Bar (0 - 145 PSI, 0 - 1000 KPa) for accurate readings in various systems.
• Thread: M14 x 1.5, ensuring secure installation in a wide range of systems.
• Operating voltage: 6 - 24 V DC for flexibility in different applications.
• Resistor range: 10 - 184 Ohm, delivering precise analog output for consistent pressure measurements.
• Warning contact: 5.50 Bar ± 0.30 Bar, closes with falling pressure, providing early alerts for critical pressure changes.
• Maximum pressure: 30 Bar for 2 seconds, capable of handling short pressure spikes.
• Temperature range: -25°C to +100°C, designed to withstand extreme environmental conditions.
• Pressure medium compatibility: Suitable for oil, fuel, and air systems.
• Connector type: Bosch push-on connector (2.8x0.8mm) for secure and easy connection.

Specifications

• Pressure Measurement Range: 0 - 10 Bar (0 - 145 PSI, 0 - 1000 KPa)
• Warning Contact: 5.50 Bar ± 0.30 Bar, closes with falling pressure
• Thread Dimensions: M14 x 1.5 Male
• Torque: 60 Nm
• Thread Length (L1): 20.5 mm
• Thread Length (L2): 12 mm
• Operating Voltage: 6 - 24 V DC
• Resistor Range: 10 - 184 Ohm
• Warning Contact Switching Capacity: Maximum 5 Watt non-inductive
• Sensor Connector: Bosch push-on connector 2.8x0.8mm
• Temperature Range: -25°C to +100°C

Compatibility and Application

• Engine oil pressure monitoring
• Automotive, industrial, and marine applications
• Compatible with oil, fuel, and air pressure systems
• Ideal for use in engines, machinery, and systems requiring precise pressure measurements

Benefits

• Provides accurate and reliable pressure measurements for a wide range of applications.
• Durable design for long-lasting performance in harsh environments.
• Easy installation with Bosch push-on connectors for secure electrical connections.
• Warning contact function helps prevent engine damage by alerting to pressure issues.
• Wide operating temperature range ensures stable performance in extreme conditions.
• Maximum pressure tolerance of 30 Bar for 2 seconds protects against short pressure spikes.
