ID
1129726
$ 243.40
1-2 weeks delivery time
-
+
The VDO 360-081-061-006C pressure sensing sender for 0–10 bar is built for dependable engine monitoring across oil, fuel, and air pressure circuits, delivering an analog 10–184 Ohm signal with a single-pole common ground. Designed around an M12 x 1.5 tapered short male thread, it supports 6–24 V DC systems and adds a built-in warning contact set at 5.00 bar ± 0.30 bar that closes with falling pressure, helping protect engines by triggering an alarm when pressure drops.
- Description
- Ask a Question
-

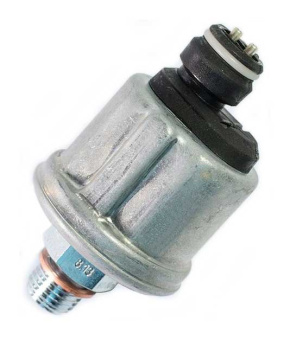

VDO 0–10 Bar Pressure Sender with M12 x 1.5 Tapered Thread
The VDO 360-081-061-006C is an analog pressure sender designed for VDO engine monitoring, providing accurate pressure feedback for systems using oil, fuel, or air as the pressure medium. In addition to its 0–10 bar measurement signal, it includes a dedicated warning contact set to close as pressure falls, supporting fast low-pressure alerts.
Compatibility
- Engine oil pressure monitoring
- Oil pressure circuits
- Fuel pressure circuits
- Air pressure circuits
- VDO engine monitoring systems (6–24 V DC)
Product Details
- Brand: VDO
- Part Number: 360-081-061-006C
- Component Type: Pressure Sender with Warning Contact
- Pressure Media: Oil, Fuel, Air
- Country of Origin: Germany
- EAN Code: 4103590691484
- HS Code: 90269000
- Weight: 0.15 kg
- Alternative Notation: 360 081 061 006C; 360/81/61/6C
Features
- Analog pressure output for stable gauge readings and monitoring systems
- Integrated warning contact to support low-pressure alarm functions
- Designed for demanding operating environments from -25 °C to +100 °C
- M12 x 1.5 tapered short thread for secure installation in pressurized circuits
- Bosch push-on connectors for both sender signal and warning contact wiring
Technical Specifications
Pressure Measuring Range 0–10 bar; 0–145 psi; 0–1000 kPa Maximum Pressure 30 bar during 2 seconds Operating Temperature -25 °C to +100 °C Operating Voltage 6–24 V DC Signal Output 10–184 Ohm (analog) Sensor Signal Single-pole common ground Thread M12 x 1.5 tapered short (male) Length Thread + Nut (L1) 21.5 mm Thread Length (L2) 13 mm Installation Torque 40 Nm Warning Contact Setpoint 5.00 bar ± 0.30 bar Warning Contact Switching Capacity Maximum 5 W non-inductive Warning Contact Behavior Closes with falling pressure Pressure Sender Connector Bosch push-on connector 2.8 x 0.8 mm Warning Contact Connector Bosch push-on connector 2.8 x 0.8 mm Packaging VDO sensor retail package Type of Connection M Article Status Orderable -
