ID
1177014
$ 116.72
1-2 weeks delivery time
-
+

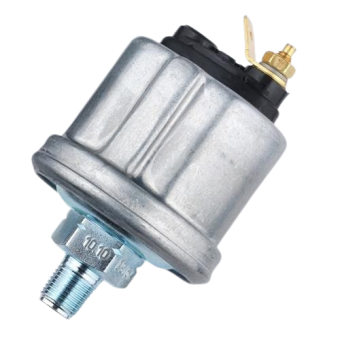

The VDO 360-081-029-042C pressure sender is a robust analog sensing unit for accurate 0 to 10 bar pressure monitoring in automotive, industrial, and machinery systems, including engine oil, fuel, and air circuits. Built for easy integration into VDO engine monitoring systems, it uses a 10–184 ohm output with single-pole common ground, operates on 6–24 V DC, and withstands -25°C to +100°C; the 1/8-27 NPTF male thread supports secure installation, with an M4 AMP male 6.3 x 0.8 mm connector and no built-in warning contact (optional external warning contact: VDO A2C59510886 makepoint switch).
- Description
- Ask a Question
-
VDO Analog Pressure Sender for 0 to 10 Bar Systems
The VDO 360-081-029-042C is a high-performance pressure sender engineered for stable, accurate readings across automotive and industrial installations. Designed for use in engine oil pressure monitoring and other pressure media such as fuel and air, it outputs an analog 10–184 ohm signal with a single-pole common ground, making it a natural fit for VDO engine monitoring instrument setups.
Compatibility
- Automotive applications
- Industrial applications
- Machinery applications
- Engine oil systems
- Fuel systems
- Air systems
- VDO engine monitoring systems
Technical Specifications
Pressure Range 0 to 10 bar (0 to 145 PSI, 0 to 1000 kPa) Maximum Pressure 30 bar for 2 seconds Thread 1/8 - 27 NPTF male Length Thread + Nut (L1) 19.5 mm Thread Length (L2) 11 mm Tightening Torque 30 Nm Operating Temperature -25°C to +100°C Pressure Media Oil, fuel, air Operating Voltage 6 - 24 V DC Signal Output Analog 10 - 184 ohm Sensor Signal Single-pole common ground Warning Contact None Optional Warning Contact VDO A2C59510886 makepoint switch Electrical Connector M4 AMP male 6.3 x 0.8 mm (50°) Connector Type M4 flat connector 6.3 x 0.8 mm Packaging VDO sensor retail package Country of Origin Germany EAN 4103590690784 HS Code 90269000 Weight 0.11 kg Connection Type C Alternative Notation 360 081 029 042C; 360/81/29/42C
Product Details
- Brand: VDO
- Part Number: 360-081-029-042C
- Category: Pressure senders
- Primary Use: Engine oil pressure monitoring
- System Integration: Suitable for VDO engine monitoring installations using analog resistance-based sender inputs
Features
- Measures pressure from 0 to 10 bar for clear, dependable engine and system monitoring
- 10–184 ohm analog output supports accurate gauge interpretation and stable readings
- 6–24 V DC operating range suits a wide variety of vehicle and equipment electrical systems
- Designed for harsh environments with -25°C to +100°C operating capability
- 1/8-27 NPTF male thread helps ensure a secure, reliable mount
- No built-in warning contact; supports an optional external warning contact via VDO A2C59510886 makepoint switch
-
