ID
1128241
$ 133.47
1-2 weeks delivery time
-
+

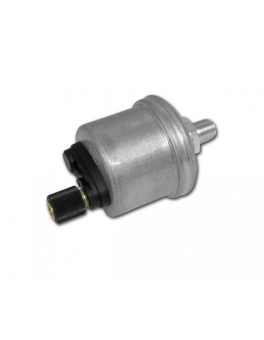

The VDO 360-081-029-038C pressure sender is a robust analog sender designed for accurate 0–10 bar pressure monitoring in engine and system instrumentation, supporting oil, fuel, and air pressure measurement within VDO engine monitoring setups. Built with an M14 x 1.5 mounting thread and a single-pole common-ground signal, it delivers a stable 10–184 Ohm output for compatible gauges, operates on 6–24 V DC, and is engineered for demanding environments with -25 °C to +100 °C operating temperature capability and 30 bar short-duration overpressure tolerance.
- Description
- Ask a Question
-
0–10 Bar Analog Pressure Sender for Engine Monitoring
The VDO 360-081-029-038C is an analog pressure sender for precise system pressure measurement across a 0–10 bar range. Designed for VDO engine monitoring, it supports common pressure media such as oil, fuel, and air, converting pressure into a stable resistance signal for instrumentation. Its M14 x 1.5 thread and specified installation torque help ensure secure fitment in demanding automotive and industrial environments.
Compatibility
- Engine oil pressure monitoring
- Fuel pressure monitoring
- Air pressure monitoring
- VDO engine monitoring applications
Product Details
- Brand: VDO
- Part Number: 360-081-029-038C
- Component Type: Pressure Sender
- Signal Type: Analog resistance output (single-pole common ground)
- Connection Type: C
Features
- Accurate pressure feedback for gauges and monitoring systems across the 0–10 bar measuring range
- Designed for use with oil, fuel, and air pressure media in instrumented systems
- Overpressure capability up to 30 bar for 2 seconds supports reliability in transient events
- Wide electrical operating range (6–24 V DC) suits mixed fleets and varied installations
Technical Specifications
Pressure Measuring Range 0–10 bar / 0–145 PSI / 0–1000 kPa Maximum Pressure 30 bar for 2 seconds Pressure Medium Oil, Fuel, Air Operating Temperature -25 °C to +100 °C Thread M14 x 1.5 (male) Length of Thread + Nut (L1) 20.5 mm Thread Length (L2) 12 mm Installation Torque 60 Nm Operating Voltage 6–24 V DC Resistor Range 10–184 Ohm Pressure Sensor Signal Single-pole common ground Warning Contact None Optional Warning Contact VDO A2C59510886 Makepoint Switch Pressure Sender Connector M4 AMP male 6.3 x 0.8 mm 50° HS Code 90269000 EAN Code 4103590949530 Weight 0.12 kg Country of Origin Germany Alternative Notation 360 081 029 038C; 360/81/29/38C Catalog Reference VDO 2014 Vehicle Electronics Catalog, page 121–122
Packaging
- VDO 360 081 029 038C pressure sender
-
