The VDO 340-808-001-002G generator-type tachometer and speed sender is an RPM generator sender designed to provide a dependable speed signal from a mechanical drive, supporting both speedometer and tachometer functions. Built with an M22 x 1.5 female thread and a 2-pole insulated-return signal with dual M4 threaded connectors, it delivers 19.3 V at 2,000 RPM and is rated up to 3,000 RPM for robust on-vehicle and industrial instrumentation setups.
- Description
- Ask a Question
-
Generator-Type Tachometer and Speed Sender, M22 x 1.5
The VDO 340-808-001-002G is a generator-type RPM sender used to drive tachometer and speedometer inputs by producing a stable electrical signal from a rotating mechanical drive. Designed as an RPM generator sender with an M22 x 1.5 female mounting thread, it supports instrumentation systems that rely on a rugged, self-contained generator signal with an insulated return.
Compatibility
- Deutz OEM reference: 01171283
- Evobus OEM reference: 8.743.083.000.0
- John Deere OEM reference: AZ12546
- KHD OEM reference: 01171283
- Mercedes-Benz OEM reference: B8 5200 0654395
- Volvo OEM reference: 6233384
Technical Specifications

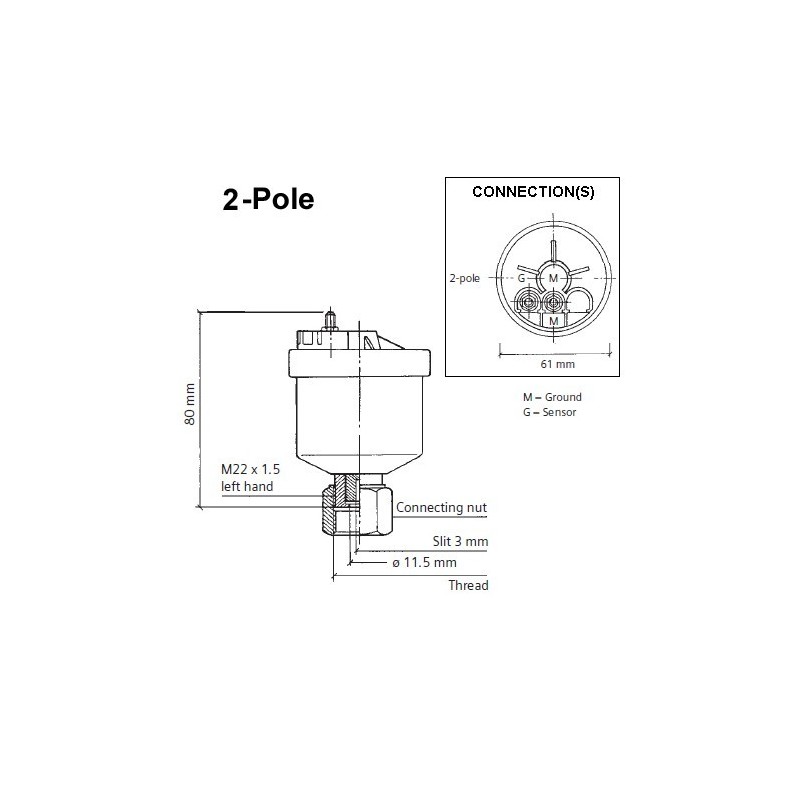

Part Number 340-808-001-002G Sender Type Generator (3,000 RPM) Maximum Revolutions 3,000 RPM Thread M22 x 1.5 Female Connector 2-pole M4 threaded (2x) Sensor Signal 2-pole insulated return No Load Voltage 19.3 V at 2,000 RPM Voltage Tolerance ± 1% at nominal value at +20°C Operating Voltage Independent Operating Temperature -25°C to +90°C Overall Length Without Thread 80 mm Maximum Driving Torque 500 pcm Protection Rating IP54 (DIN 40050) EAN Code 4103590949486 Weight 0.40 kg Category RPM generator senders Packaging VDO sensor retail package Part Status Orderable
Product Details
- Brand: VDO
- Component Type: Generator-type tachometer and speed sender (RPM generator sender)
- Mounting: M22 x 1.5 female threaded body
- Electrical Connection: 2-pole insulated-return signal via 2-pole M4 threaded connector ends
Features
- Provides a reliable generator signal for tachometer and speedometer inputs
- Insulated-return design supports stable signal transmission in demanding electrical environments
- Rugged, threaded mechanical fit for secure installation on compatible drives
- Suitable for applications requiring generator-type sender output up to 3,000 RPM
-
