The VDO 323-805-003-001N oil temperature sensing unit is built for accurate engine- and transmission-oil temperature monitoring, using an analog resistance signal (322.8–18.6 Ohm) across a +50°C to +150°C measuring range. With an M14 x 1.5 thread, 2-pole insulated return signal, and AMP male 6.3 x 0.8 mm connector, it integrates cleanly into automotive temperature instrumentation to help keep lubrication temperature under control without a built-in warning contact.
- Description
- Ask a Question
-
VDO Oil and Fluid Temperature Sender with M14 x 1.5 Thread
The VDO 323-805-003-001N is an analog temperature sender designed for engine and transmission oil temperature measurement, supporting dependable temperature feedback for vehicle gauges and monitoring systems. It uses a dual-pole insulated return signal and mounts via an M14 x 1.5 male thread for a secure, service-friendly installation.
Compatibility
- Automotive applications for engine oil temperature monitoring
- Automotive applications for transmission oil temperature monitoring
Technical Specifications

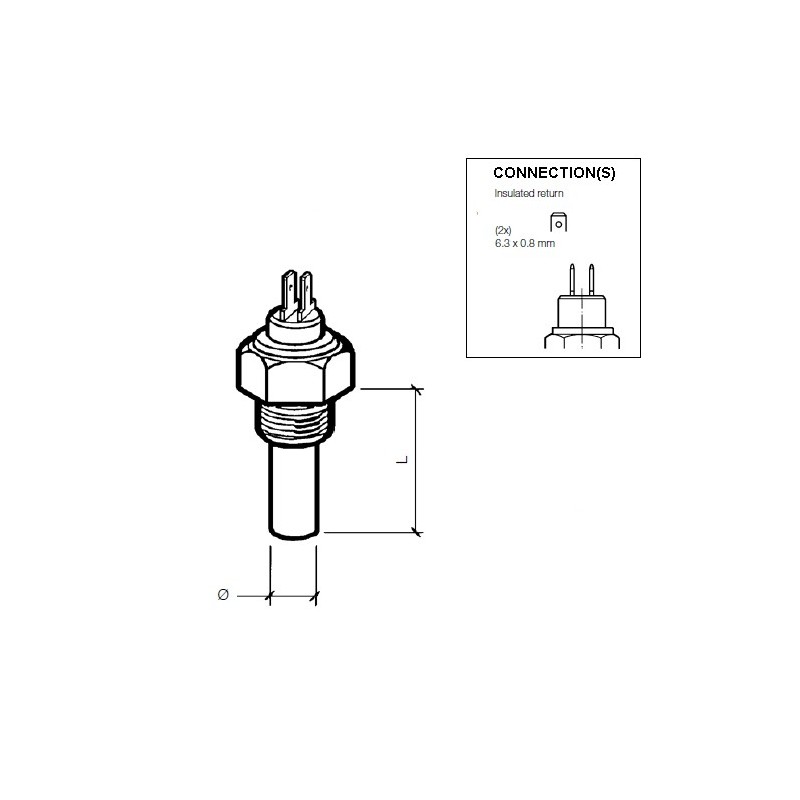

Part Number 323-805-003-001N Alternate Number A2C1988480001 Temperature Measuring Range +50°C to +150°C Minimum to Maximum Operating Temperature -40°C to +180°C Thread M14 x 1.5 (male) Sender Element Length Plus Thread (L) 29 mm Sensor Diameter 11 mm Tightening Torque 20 Nm Operating Voltage 6–24 V DC Resistance Range 322.8–18.6 Ohm Resistance at 100°C 61.92 Ohm ± 5.49 Ohm Sensor Signal 2-pole insulated return Warning Contact None Optional Warning Contact VDO A2C59510886 Makepoint Switch Connector AMP male 6.3 x 0.8 mm Connector Type AMP blade 6.3 x 0.8 mm Type of Connection G Temperature Medium Coolant, water, air, engine oil, transmission oil, fuel Weight 0.50 kg Category Temperature sensors Communication Analog Packaging VDO sensor retail package
Product Details
- Brand: VDO
- Component Type: Oil temperature sender (also suitable for engine and transmission oil temperature measurement)
- Role: Converts fluid temperature into an analog resistance signal for gauges and monitoring electronics
Features
- Accurate temperature feedback across a +50°C to +150°C measuring range for stable oil-temperature monitoring
- Dual-pole insulated return signal helps ensure dependable readings in vehicle electrical systems
- M14 x 1.5 threaded fit supports secure installation with defined tightening torque guidance
- AMP blade-style connector interface (6.3 x 0.8 mm) for straightforward integration into harnesses and instrumentation
-
