ID
1129681
$ 81
1-2 weeks delivery time
-
+

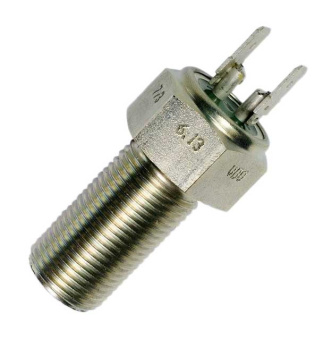

The VDO 340-804-007-011C inductive tacho and speed sender is a high-precision RPM and road-speed pickup for VDO engine monitoring and instrumentation systems, producing a 250 Hz signal (15,000 pulses per minute) for accurate speed data. Built with an M18 x 1.5 male thread and a rugged -25°C to +140°C operating range, it uses an independent voltage supply, an insulated return signal output, and a blade connector for dependable installation and stable signal transmission.
- Description
- Ask a Question
-
Inductive Speed and Tacho Sender with M18 x 1.5 Male Thread
Designed for reliable speed signal generation, the VDO 340-804-007-011C is an inductive tacho and speed sender used in VDO engine monitoring and related instrumentation. With a 250 Hz output (equivalent to 15,000 pulses per minute), it supports precise speed/RPM measurement, while its insulated-return signal design and independent supply help maintain clean, consistent readings in demanding operating environments.
Compatibility
- VDO engine monitoring applications
- Systems using CLAAS part number 06768350
Technical Specifications
Brand VDO Part Number 340-804-007-011C Sender Type Inductive Measurement Range 0–250 Hz Frequency 250 Hz (15,000 pulses per minute) Thread M18 x 1.5 male Operating Temperature -25°C to +140°C Overall Length 70 mm Section Length L1 33 mm Section Length L2 34 mm Section Length L3 35.1 ± 0.1 mm Operating Voltage Independent Signal Output Insulated return Sensor Signal 2-pole insulated return Connector Blade 2 x 6.3 x 0.8 mm Internal Resistance 1.050 Ohm ± 100 Ohm EAN Code 410359069047 HS Code 90318080 Weight 7.51 kg Country of Origin Czech Republic Article Status Orderable Alternative Notation 340 804 007 011C; 340/804/7/11C Packaging OEM bulk package (100 pieces)
Product Details
- Component Type: Inductive tacho and speed sender
- Installation Interface: M18 x 1.5 male thread
- Electrical Interface: Insulated return signal with blade connector
- Reference Cross-Number: Replaces CLAAS 06768350
Features
- Generates a stable inductive speed/RPM signal up to 250 Hz for accurate monitoring
- Wide operating temperature range supports reliable performance in harsh environments
- Independent supply and insulated return output help reduce signal interference
- Standard blade connector and M18 x 1.5 mounting simplify integration into existing harnesses and brackets
-
