VDO 333-035-011C - Cockpit International Tachometer 4.000 RPM 80mm 12-24V

Article VDO.333035011C

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO 333-035-011C is a compact tachometer designed for vehicles with a 12-24V power supply. It features analog RPM measurement up to 4,000 RPM, an engine hours counter, and an accuracy that is not specified by VDO. The tachometer is connected using an 8-pole AMP male blade connector and has an installation depth of 91mm.

Description
Ask a Question

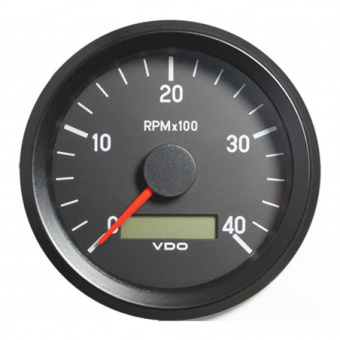

VDO 333-035-011C - Cockpit International Tachometer

The VDO 333-035-011C is a high-quality tachometer designed for use in vehicles with a 12-24V power supply. With an installation diameter of 80mm and an outside diameter of 85mm, this tachometer is compact and easy to install. The installation depth is 91mm, and it can be mounted using either a spinlock nut or a bracket with a locking height of 0.5mm to 23mm.

The VDO 333-035-011C features analog RPM measurement up to 4,000 RPM and also includes an engine hours counter. It uses the alternator terminal W and the ignition terminal 1 for its sensor signal tachometer. The accuracy of the tachometer is not specified by VDO.

The tachometer is connected using an 8-pole AMP male blade connector measuring 6.3 x 0.8mm. The illumination is connected via an AMP male blade connector measuring 6.3 x 0.8mm, with four connections available.
