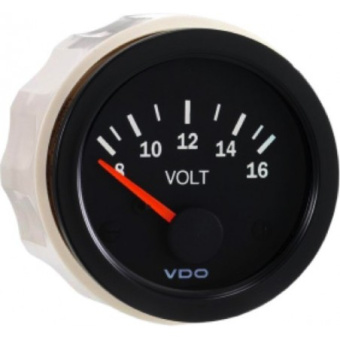

VDO 332-010-001C - Cockpit Vision Voltmeter 8-16V 52mm 12V

VDO 332-010-001C - Cockpit Vision Voltmeter 8-16V 52mm 12V

Key Features:

• Voltmeter range of 8 to 16V DC for accurate monitoring of 12V battery or electrical system voltage.
• 52mm (2 1/16") diameter with a black bezel and red backlit pointer for clear and easy visibility.
• Backlight illumination available in white, green, and red options (12V - 2 Watt) for enhanced readability in various lighting conditions.
• AMP male blade connectors (6.3 x 0.8mm) for secure and reliable electrical connections.
• Operating voltage of 11 to 16V DC, perfect for most automotive, marine, and industrial applications.
• IP64-rated front protection ensures dust and water resistance, ideal for harsh environments.
• Temperature range: -30°C to +85°C for reliable operation in diverse conditions.
• Plastic, anti-glare lens for clear visibility and reduced glare under bright light conditions.
• CE certified for safety and quality assurance.
• Easy installation with a triangular black bezel and threaded ring (special tool required for bezel change).

Specifications:

• Part Number: 332-010-001C
• Voltage Measurement Range: 8 - 16V DC
• Operating Voltage: 11 - 16V DC
• Current Consumption (without illumination): 67 mA
• Dial Illumination: Backlight 12V - 2 Watt (White, Green, Red)
• Connector Type: AMP Male blade connector (6.3 x 0.8mm, 2x)
• Dial Colour: Black
• Pointer: Red backlight
• Bezel: Interchangeable black triangle bezel (special tool required)
• Lens: Plastic, single, non-reflective, anti-glare
• IP Rating: Front - IP64 (Ozone proof, UV proof), Rear - IP42
• Housing: Plastic, flame retardant
• Packaging: VDO Instruments OEM bulk
• Country of Origin: Malaysia
• Operating Temperature: -30°C to +85°C
• Mechanical Shock Resistance: Max 1G - 25Hz - 2000Hz (8 hours)
• EMC Test: According to EN 13309 and ISO 13766
• CE Standard: Yes

Compatibility and Application:

• Ideal for VDO engine monitoring systems, providing accurate battery and electrical system voltage monitoring.
• Perfect for automotive, marine, and industrial applications requiring reliable voltage readings.
• Compatible with 12V electrical systems, making it suitable for a wide range of vehicles and machinery.

Benefits:

• Accurate voltage monitoring ensures optimal battery health and electrical system performance.
• Clear visibility with backlit dial and multi-colour illumination for ease of use in all lighting conditions.
• Durable design with IP64 protection makes it resistant to dust and water, suitable for harsh environments.
• Simple installation with a secure bezel and high-quality connectors for reliable and secure operation.
• CE certified for compliance with safety standards, providing long-lasting reliability and peace of mind.
