ID
1008591
$ 45.96
1-2 weeks delivery time
-
+
The VDO 323-801-001-006N coolant temperature sensing unit supports dependable engine temperature monitoring in the cooling system by providing an analog resistance signal across a +40°C to +120°C measuring range. Built with an M14 x 1.5 thread for straightforward installation, it uses a 1-pole common ground earth return for stable grounding and is designed for 6–24 V DC systems, helping keep gauge and control readings accurate for smooth, reliable vehicle operation.
- Description
- Ask a Question
-
VDO Coolant Temperature Sensing Unit M14 x 1.5 Rated to 120°C
The VDO 323-801-001-006N is an automotive coolant temperature sender designed for accurate temperature monitoring within the vehicle cooling system. It outputs an analog resistance signal (common ground) used by gauges or electronic control systems to track operating temperature and support optimal engine performance.
Features
- Accurate coolant temperature feedback for stable gauge and control readings
- M14 x 1.5 threaded fit for secure installation
- Earth return design with single-pole common ground signal
- No warning contact for clean, dedicated sender operation
- Designed for typical vehicle electrical systems from 6 to 24 V DC
Compatibility
- Automotive applications requiring an M14 x 1.5 coolant temperature sender with single-pole common ground signal
Product Details
- Brand: VDO
- Part Number: 323-801-001-006N
- Component Type: Coolant Temperature Sender
- Function: Coolant temperature measurement (analog resistance output)
- EAN: 4103590400123
- Weight: 0.03 kg
Technical Specifications

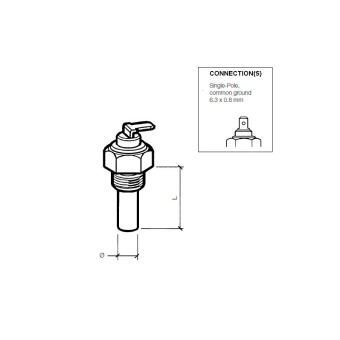

Temperature Measuring Range +40°C to +120°C Minimum to Maximum Operating Temperature -40°C to +150°C Thread M14 x 1.5 (male) Sender Element Length Plus Thread 29 mm Sensor Diameter 9 mm Installation Torque 20 Nm Operating Voltage 6–24 V DC Sender Resistance Range 287.4–22.7 Ohm Sensor Signal Single-pole common ground Warning Contact None Connector AMP male 6.3 x 0.8 mm Temperature Media Coolant, water, air, engine oil, transmission oil, fuel Reference Value at 100°C 38.47 Ohm ± 2.98 Ohm -
