ID
1369855
$ 55.96
1-2 weeks delivery time
-
+
The VDO 323-801-001-022N engine coolant temperature sensor is a robust sender designed for accurate temperature monitoring from +40°C to +120°C as part of a vehicle’s cooling-system instrumentation and VDO engine monitoring setups. With an M18 x 1.5 thread, a single-pole common-ground signal, and an analog resistance output of 287.4–22.7 Ohm, it provides dependable temperature feedback to support stable operating temperatures and long-term engine protection across various vehicles using this thread and connection style.
- Description
- Ask a Question
-
VDO Engine Coolant Temperature Sender with M18 x 1.5 Thread
Built for dependable engine temperature monitoring, the VDO 323-801-001-022N coolant temperature sender measures thermal conditions in the cooling circuit and converts them into an analog resistance signal for gauges or VDO engine monitoring systems. Its M18 x 1.5 male thread and single-pole common-ground design make it a practical choice for reliable, repeatable temperature feedback in demanding vehicle environments.
Compatibility
- Various vehicles using an M18 x 1.5 temperature sender connection
Technical Specifications

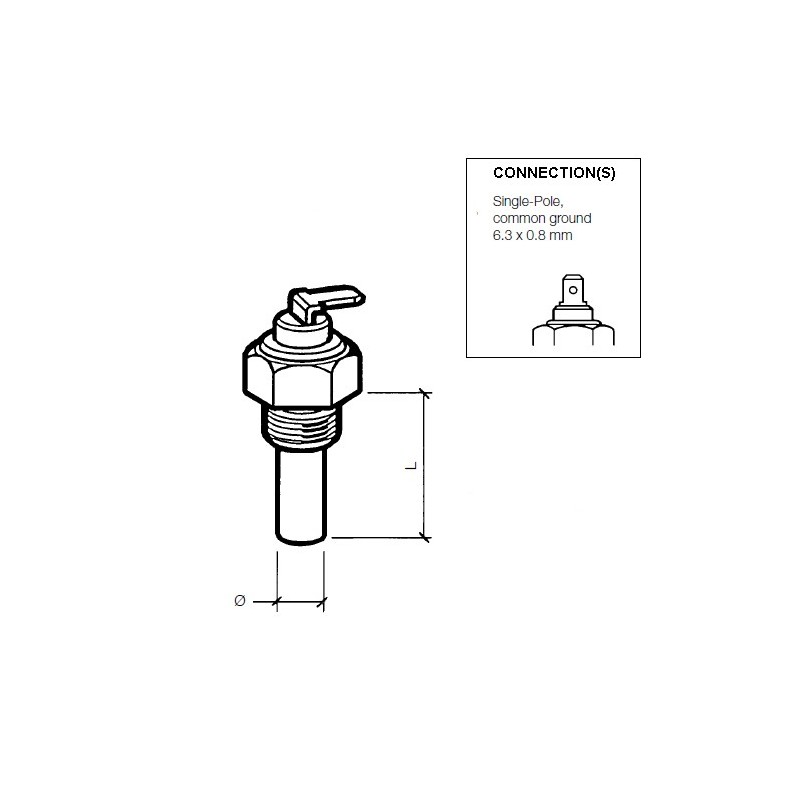

Part Number 323-801-001-022N Temperature Measuring Range +40 °C to +120 °C Minimum to Maximum Operating Temperature -40 °C to +150 °C Thread M18 x 1.5 Sender Element Length Plus Thread (L) 29 mm Sensor Diameter 9 mm Torque 30 Nm Operating Voltage 6 to 24 V DC Resistance Range 287.4 to 22.7 Ohm Resistance at 100 °C 38.47 Ohm ± 2.98 Ohm Sensor Signal Single-pole common ground Warning Contact None Optional Warning Contact VDO A2C59510886 Makepoint Switch Connector AMP male 6.3 x 0.8 mm Temperature Media Coolant, water, air, engine oil, transmission oil, fuel HS Code 90259000 EAN 4103590689672 Weight 0.04 kg Country of Origin Czech Republic Connection Type A Catalog Reference VDO 2014 Vehicle Electronics Catalog, Page 136 to 137 Alternative Notation 323 801 001 022N; 323/801/1/22N
Product Details
- Brand: VDO
- Component Type: Coolant temperature sender
- System Location: Engine cooling circuit temperature measurement point
- Application: VDO engine monitoring
- Packaging: VDO sensor retail package
Features
- Accurate analog temperature feedback to support stable engine operation
- M18 x 1.5 thread helps ensure a secure installation in compatible ports
- Single-pole common-ground signal suited to typical gauge and monitoring wiring
- Resistance output matched to the specified VDO sender curve for consistent readings
- Supports monitoring across multiple media, including coolant, oils, and fuel
-
