The VDO 323-801-001-029N coolant temperature sensing unit provides accurate temperature feedback from +40°C to +120°C for engine and fluid monitoring in automotive, marine, and industrial systems. Designed for secure installation with an M16 x 1.5 thread and a 1-pole common-ground signal, it outputs a 287.4–22.7 Ohm resistance range for dependable gauge or monitoring-system input, with optional safety expansion via the VDO A2C59510886 makepoint switch.
- Description
- Ask a Question
-

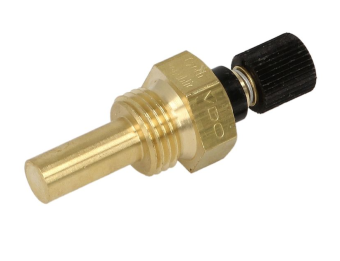

VDO Coolant Temperature Sensing Unit 120°C, M16 x 1.5
The VDO 323-801-001-029N is a coolant temperature sender built for dependable temperature monitoring across automotive, marine, and industrial installations. Using a single-pole common-ground signal and an analog resistance output, it supports stable readings for dashboards and engine monitoring systems, helping operators track operating temperature and protect critical components.
Compatibility
- Automotive systems
- Marine systems
- Industrial systems
- VDO engine monitoring applications
Technical Specifications
Part Number 323-801-001-029N Temperature Measuring Range +40°C to +120°C Operating Temperature Range -40°C to +150°C Thread M16 x 1.5 (male) Sender Element Length + Thread (L) 29 mm Sensor Diameter 9 mm Recommended Tightening Torque 30 Nm Operating Voltage 6–24 V DC Signal Type Single-pole common ground Resistance Range 287.4–22.7 Ohm Resistance at 100°C 38.47 Ohm ± 2.98 Ohm Connector M4 plastic knurled nut Warning Contact None Optional Warning Contact VDO A2C59510886 makepoint switch Compatible Media Coolant, water, air, engine oil, transmission oil, fuel Type of Connection E HS Code 90259000 EAN Code 4103590689689 Weight 0.03 kg Country of Origin Czech Republic Catalog Reference VDO 2014 Vehicle Electronics Catalog, pages 136–137 Reference Table VDO temperature sender table: 1 Alternative Notation 323 801 001 029N; 323/801/1/29N
Product Details
- Brand: VDO
- Component Type: Coolant temperature sender
- Typical System Location: Threaded into a coolant passage, housing, or temperature port to read fluid temperature directly
- Primary Function: Provides an analog resistance signal for temperature indication and monitoring
Features
- Accurate measurement across +40°C to +120°C to support dependable temperature tracking
- Robust operating range (-40°C to +150°C) suited to harsh engine-room and machinery environments
- M16 x 1.5 thread with a defined 30 Nm tightening torque for consistent installation
- Analog resistance output (287.4–22.7 Ohm) designed for stable gauge and monitoring-system input
- Works with multiple fluids including coolant, water, oils, and fuel for versatile monitoring
- Optional makepoint switch (VDO A2C59510886) enables add-on warning functionality when required
-
