The VDO 323-801-001-010N coolant temperature sensing unit provides stable, accurate temperature feedback from +40°C to +120°C for VDO engine monitoring in automotive, industrial, and marine installations. Built around a single-pole common ground signal with an analog resistance output (287.4–22.7 Ohm) and 6–24 V DC system compatibility, it supports dependable gauge and monitoring-system readings across coolant, water, air, engine oil, transmission oil, and fuel circuits, using a 1/2-14 NPTF male thread for secure mounting with a specified 30 Nm tightening torque.
- Description
- Ask a Question
-

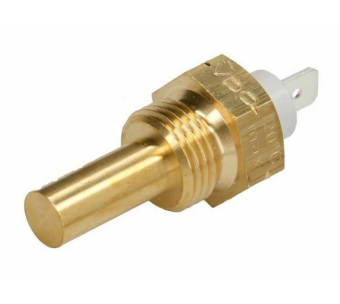

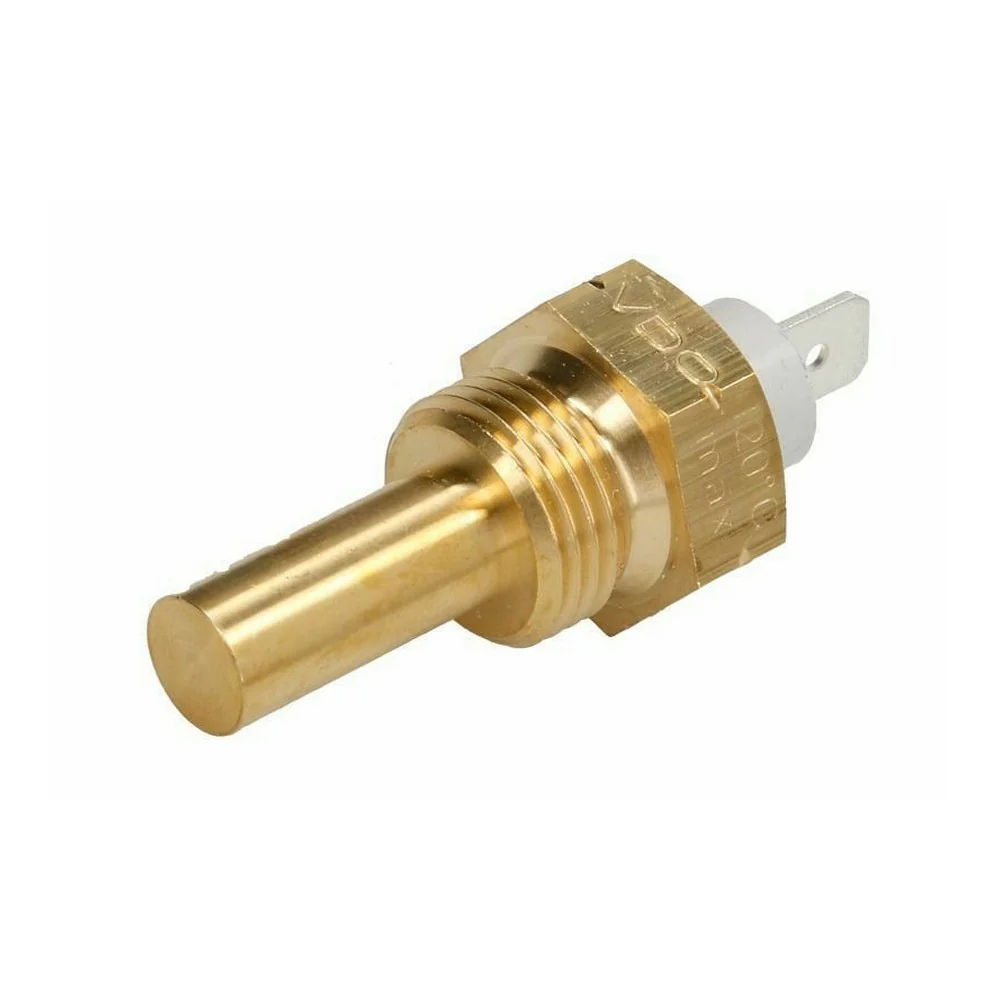

VDO Coolant Temperature Sensing Unit 40°C to 120°C, 1/2-14 NPTF
The VDO 323-801-001-010N is an analog coolant temperature sender developed for VDO engine monitoring setups used across automotive, industrial, and marine applications. Designed to track temperature from +40°C to +120°C, it supplies the monitoring system with a stable resistance-based signal, helping operators and drivers keep engine temperatures under control and react quickly to overheating conditions.
Compatibility
- VDO engine monitoring systems
- Automotive applications
- Industrial applications
- Marine applications
- Temperature media: coolant
- Temperature media: water
- Temperature media: air
- Temperature media: engine oil
- Temperature media: transmission oil
- Temperature media: fuel
Technical Specifications

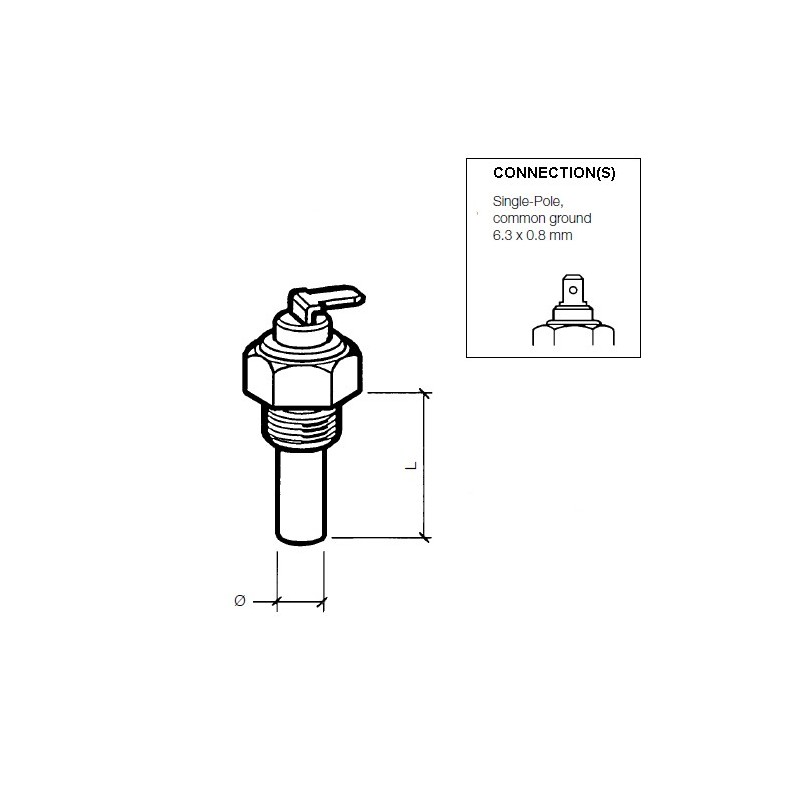

Part Number 323-801-001-010N Temperature Measuring Range +40°C to +120°C Operating Temperature -40°C to +150°C Thread 1/2-14 NPTF male Sender Element Length Plus Thread 29 mm Sensor Diameter 9 mm Tightening Torque 30 Nm Operating Voltage 6 to 24 V DC Resistance Range 287.4 to 22.7 Ohm Resistance at 100°C 38.47 Ohm ± 2.98 Ohm Signal Type Single-pole common ground Connector AMP male 6.3 x 0.8 mm Warning Contact None Optional Warning Contact VDO A2C59510886 makepoint switch Packaging VDO sensor retail package Country of Origin Czech Republic EAN 4103590689665 HS Code 90259000 Weight 0.07 kg Type of Connection A Communication Analog Alternative Notation 323 801 001 010N; 323/801/1/10N
Product Details
- Brand: VDO
- Component Type: Coolant temperature sender (temperature sensor)
- Electrical Interface: Single-pole common ground signal with AMP male blade connector
- Mounting: 1/2-14 NPTF male thread; tightening torque 30 Nm
Features
- Delivers precise temperature feedback for reliable gauge and monitoring-system readings
- Wide electrical compatibility with 6–24 V DC systems
- Designed for harsh operating environments with a broad operating-temperature capability
- Supports multiple temperature media, making it suitable for varied engine and system monitoring points
- Optional VDO A2C59510886 makepoint switch can be used for added warning functionality
-
