ID
1129611
$ 78.84
1-2 weeks delivery time
-
+

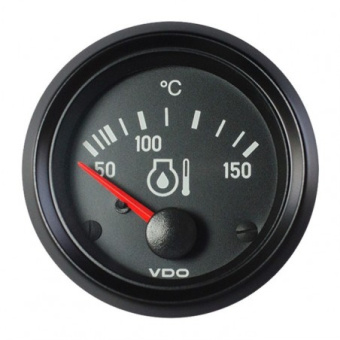

The VDO 310-040-003G Cockpit International 24V engine oil temperature gauge is a 52 mm instrument built for dependable engine monitoring across a +50°C to +150°C range. Using a VDO NTC thermistor sender signal (322.8–18.6 Ohm), it delivers stable, easy-to-read temperature indication, while AMP male blade connectors simplify wiring for both the sender input and illumination. Designed for panel mounting with a bracket, it’s a clean, professional upgrade for any 24V dashboard focused on protecting engine lubrication performance.
- Description
- Ask a Question
-
Cockpit International 24V Engine Oil Temperature Instrument 52 mm
Built for clear engine health monitoring, the VDO 310-040-003G is a Cockpit International engine oil temperature gauge covering +50°C to +150°C. It uses a VDO NTC thermistor sender signal for accurate analog indication and connects via AMP male blade terminals for straightforward installation in 24V dashboards.
Compatibility
- 24V engine monitoring instrument panels using VDO Cockpit International gauges
- Installations using a VDO NTC thermistor oil temperature sender signal (322.8–18.6 Ohm)
- Dashboards with a 52 mm (2 1/16 inch) panel cutout
Product Details
- Brand: VDO
- Part Number: 310-040-003G
- Series: Cockpit International
- Instrument Type: Engine oil temperature gauge
- Dial Color: Black
- Communication: Analog
- Country of Origin: Malaysia
Features
- Monitors oil temperature to help protect lubrication performance under load
- Designed for 24V electrical systems with a wide operating voltage window
- Standard 52 mm format for clean integration into instrument clusters
- AMP male blade connectors support fast, service-friendly wiring
- Reverse polarity protection helps safeguard the gauge during installation
- Anti-glare single lens improves readability in bright cockpit or cab environments
Technical Specifications
Measurement Range +50°C to +150°C Nominal System Voltage 24 V DC Operating Voltage 21.5–30 V DC Current Consumption (Without Illumination) 131 mA Sender Signal VDO NTC thermistor 322.8–18.6 Ohm Panel Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59.25 mm (2 1/3 inch) Installation Depth 67.5 mm Bracket Locking Height 0.5–8 mm Deflection Angle 90° Sensor Connection AMP male blade connector 6.3 x 0.8 mm (3x) Illumination Connection AMP male blade connector 6.3 x 0.8 mm (2x) Dial Illumination Floodlight 24 V, 2 W (white, green, red) Pointer Red backlight Front Protection Class IP64 (DIN 40050), ozone-proof, UV-proof Rear Protection Class IP42 (DIN 40050) Operating Temperature -30°C to +85°C Compliance CE; EMC according to EN 13309 and ISO 13766 Housing Flame-retardant plastic Lens Single anti-glare Bezel Black triangular threaded ring; interchangeable with special tool HS Code 85122000 EAN 4103590925268 Weight 0.16 kg
Retail Package
- VDO Cockpit International 310-040-003G temperature gauge
- Steel bracket, zinc-plated and chromated
-
