The VDO Cockpit International 310-030-015G gear oil temperature gauge provides clear, reliable monitoring from +50°C to +150°C for drivetrain and gearbox protection in engine monitoring installations. Built for a 52 mm panel cutout with a 59.25 mm outside diameter, it uses a VDO NTC thermistor sender signal (322.8–18.6 Ohm) and AMP male blade connectors for straightforward wiring of both the sensor input and illumination, supporting stable readings and confident operation on 12 V systems.
- Description
- Ask a Question
-

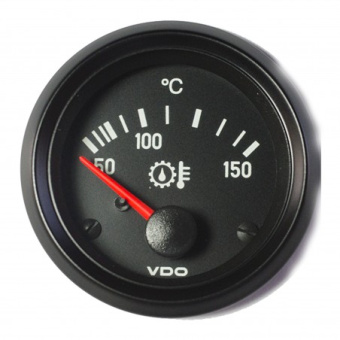

Cockpit International Gear Oil Temperature Instrument 52 mm 150°C
The VDO 310-030-015G is a Cockpit International gear oil temperature gauge designed for engine monitoring setups where gearbox and driveline oil temperature must be kept under control. With an easy-to-read scale from +50°C to +150°C, this 52 mm panel instrument uses a VDO NTC thermistor sender characteristic (322.8 18.6 Ohm) and AMP male blade connectors to simplify installation and deliver dependable temperature indication.
Compatibility
- VDO NTC thermistor sender signal: 322.8 18.6 Ohm
- 52 mm (2 1/16 inch) panel hole diameter
- 12 Volt DC instrument installations (operating voltage range listed as 11 16 Volt DC)
Technical Specifications
Part Number 310-030-015G Series Cockpit International Function Gear oil temperature Measurement Range +50°C to +150°C Panel Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59.25 mm (2 1/3 inch) Installation Depth 67.5 mm Locking Height With Bracket 0.5 mm to 8 mm Operating Voltage 11 to 16 Volt DC Current Consumption Without Illumination 131 mA Reverse Polarity Protection Yes Sender Signal VDO NTC Thermistor 322.8 to 18.6 Ohm Connection AMP male blade connector 6.3 x 0.8 mm (3x) Illumination Connection AMP male blade connector 6.3 x 0.8 mm (2x) Deflection Angle 90 Dial Color Black Pointer Red backlight Dial Illumination Floodlight 24V, 2 Watt, White/Green/Red Lens Single anti-glare Bezel Triangular black, threaded ring Bezel Interchangeable Yes (special tool required) Front Protection Class IP64 (DIN 40050), ozone proof, UV proof Rear Protection Class IP42 (DIN 40050) Operating Temperature -30°C to +85°C CE Yes Mechanical Shock (8 hours) Max 1G, 25 Hz to 2000 Hz EMC Test According to EN 13309 and ISO 13766 Nominal Position NL 0 to NL 90 (DIN 16257) Housing Plastic, flame retardant Color Black EAN Code 4103590689818 HS Code 85122000 Weight 0.16 kg Country of Origin Malaysia
Product Details
- Brand: VDO
- Category: Temperature gauges
- Instrument Line: Cockpit International
- Typical Use: Gear oil temperature indication for engine monitoring panels
- Retail Package: Temperature gauge (A2C6252945266) and steel bracket (zinc-plated and chromatized); connecting material ordered separately
Features
- Monitors gear oil temperature to support gearbox and driveline protection under load
- 52 mm format fits common marine and commercial-vehicle instrument panels
- Analog VDO NTC thermistor signal for stable, consistent readings
- AMP male blade connectors for practical sensor and illumination wiring
- Reverse polarity protection to help safeguard the instrument during installation and service
-
