ID
1129596
1-2 weeks delivery time
Our managers will contact you and clarify the terms of the order

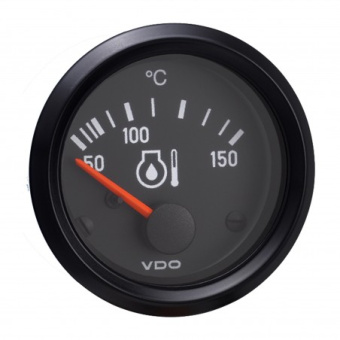

The VDO Cockpit International engine oil temperature gauge 310-030-003G provides clear, reliable oil-temperature monitoring from +50°C to +150°C for automotive, marine, and industrial engine instrumentation panels. Designed for VDO NTC thermistor input signals (322.8–18.6 Ohm), it combines a black dial with red pointer and multi-color floodlight illumination (white, green, or red) for excellent readability, while the IP64-rated front helps protect the instrument face against dust and water in demanding operating environments.
- Description
- Ask a Question
-
Cockpit International Oil Temperature Instrument 50°C to 150°C (52 mm, 12 V)
The VDO 310-030-003G Cockpit International engine oil temperature gauge is a rugged, high-visibility analog instrument built for dependable engine monitoring. With a measurement range of +50°C to +150°C and compatibility with VDO NTC thermistor signals (322.8–18.6 Ohm), it helps operators track oil temperature accurately for safer, more controlled operation. A black dial, red pointer, and selectable floodlight illumination (white, green, or red) keep readings easy to see, and the IP64 front protection supports reliable use in harsh installations.
Compatibility
- Automotive engine monitoring systems requiring an analog oil temperature gauge
- Marine engine monitoring systems requiring an analog oil temperature gauge
- Industrial engine monitoring systems requiring an analog oil temperature gauge
- Analog sender input: VDO NTC thermistor (322.8–18.6 Ohm)
Technical Specifications
Brand VDO Part Number 310-030-003G Instrument Type Engine oil temperature gauge Measurement Range +50°C to +150°C Signal Input Analog, VDO NTC thermistor 322.8–18.6 Ohm Operating Voltage 11–16 V DC Current Consumption 131 mA (without illumination) Panel Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59.25 mm (2 1/3 inch) Installation Depth 67.5 mm Connector Type AMP male blade connectors (6.3 x 0.8 mm) Dial Illumination Floodlight illumination in white, green, or red Illumination Rating 12 V, 3.4 W (24 V, 3 W optional) Front Protection Class IP64 (DIN 40050), ozone resistant, UV resistant Rear Protection Class IP42 (DIN 40050) Operating Temperature -30°C to +85°C Dial Color Black Pointer Red Lens Plastic, anti-glare Bezel Model Black triangle (interchangeable; special tool required) Deflection Angle 90° Reverse Polarity Protection Yes Compliance CE, EMC-tested according to EN 13309 and ISO 13766 Mechanical Shock (8 hours) Max 1G, 25 Hz to 2000 Hz Country of Origin Malaysia EAN 4103590925244 HS Code 85122000 Weight 0.16 kg Packaging VDO instrument retail
Product Details
- Series: VDO Cockpit International
- Mounting: Standard 52 mm panel cutout for clean dashboard integration
- Protection: IP64-rated front helps shield the gauge face in dusty and wet operating areas
- Housing: Flame-retardant plastic housing designed for demanding environments
Features
- Supports confident engine operation by keeping oil-temperature trends easy to monitor
- High-contrast dial design improves readability at a glance
- Selectable floodlight colors help match cockpit lighting and improve night visibility
- Designed for reliable analog integration with VDO NTC thermistor sender signals
- Durable front sealing and UV/ozone resistance support long service life in exposed installations
-
