ID
1369851
$ 157.88
1-2 weeks delivery time
-
+
The VDO 230-112-003-012C pressure switch is a single-pole common-ground warning switch that closes the contact as pressure falls below 6.00 PSI, supporting dependable low-pressure monitoring in oil, fuel, or air systems. With a 1/8-27 NPTF male thread, M4 screw connection, and up to 5 W non-inductive switching capacity across 6–24 V DC systems, it provides stable, repeatable switching for control circuits and warning lamps.
- Description
- Ask a Question
-

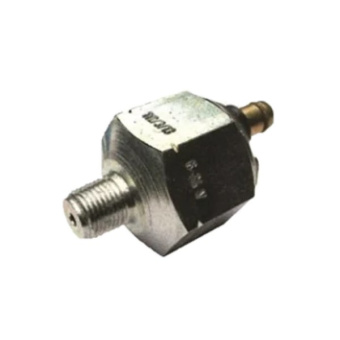

Low-Pressure Warning Switch 6.00 PSI, 1/8-27 NPTF
The VDO 230-112-003-012C is a robust pressure switch built for accurate low-pressure monitoring. It uses a normally closed warning contact strategy: the contact closes when pressure falls (switchpoint 6.00 PSI), making it well suited for warning-lamp and protection circuits in systems using oil, fuel, or air as the pressure medium.
Compatibility
- Oil pressure monitoring systems
- Fuel pressure monitoring systems
- Air pressure monitoring systems
Product Details
- Brand: VDO
- Part Number: 230-112-003-012C
- Category: Pressure Switch
- Switch Function: Contact closes when pressure < 6.00 PSI
- Signal Type: Single-pole common ground
- Connection: M4 screw / M4 ring connection
- Packaging: VDO sensor retail package
- EAN Code: 4103590948861
- Weight: 0.08 kg
Technical Specifications
Pressure Switchpoint 6.00 PSI ± 2.00 PSI Warning Contact 6.00 PSI - Normally closed Pressure Range 0 - 12 bar Maximum Pressure 30 bar during 2 seconds Thread 1/8 - 27 NPTF male Length Thread + Nut (L1) 26 mm Thread Length (L2) 11 mm Tightening Torque 30 Nm Operating Temperature -25 °C to +120 °C Housing Hex 27 mm - contact chamber vented Pressure Medium Oil, fuel, air Operating Voltage 6 - 24 V DC Switching Capacity Maximum 5 W non-inductive Contact Response Slow Type of Connection Model: 1A7 Catalog Reference VDO 2014 Vehicle Electronics Catalog: Page 131 - 132
Features
- Provides a clear low-pressure warning signal by closing the circuit as pressure decreases.
- Common-ground, single-pole configuration supports straightforward integration into warning lamp and control circuits.
- 1/8-27 NPTF threaded installation helps ensure a secure, stable fit in pressurized ports.
- Designed to operate across 6–24 V DC electrical systems with up to 5 W non-inductive load.
-
