ID
1008567
$ 186.64
1-2 weeks delivery time
-
+
The VDO 230-213-001-011C pressure switch is a 12.00 bar switching device for pressure monitoring and control in automotive, industrial, and VDO engine monitoring applications. With a 1/8-27 NPTF male thread and a common-ground, single-pole switching signal (contact closes as pressure falls), it supports dependable warning and protection logic for systems using oil, fuel, or air as the pressure medium.
- Description
- Ask a Question
-
VDO 12 Bar Pressure Switch with 1/8-27 NPTF Connection
Built for reliable pressure monitoring and control, the VDO 230-213-001-011C pressure switch is designed to switch at 12.00 bar and provide a clear warning-style output where the contact closes as pressure falls. It is well-suited to automotive and industrial installations and is listed for VDO engine monitoring, helping safeguard systems operating with oil, fuel, or air as the pressure medium.
Compatibility
- Automotive applications
- Industrial applications
- VDO engine monitoring
Technical Specifications

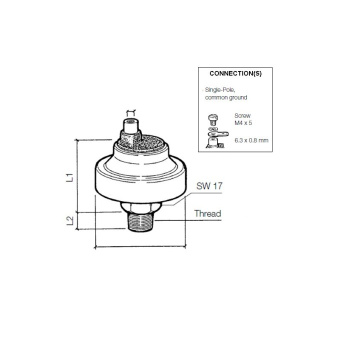

Part Number 230-213-001-011C Category Pressure switches Pressure Switchpoint 12.00 bar ± 0.40 bar Pressure Range 0 - 18 bar Maximum Pressure 40 bar during 2 seconds Switch Function Contact closes when pressure < 12.00 bar Analogue Signal Contact closes with falling pressure Sensor Signal Single-pole common ground Switching Capacity Maximum 5 watt, non-inductive Operating Voltage 6 - 24 V DC Contact Response Slow Thread 1/8 - 27 NPTF male Length Thread + Nut (L1) 39 mm Thread Length (L2) 11 mm Torque 30 Nm Operating Temperature -25°C to +120°C Housing Round 45 mm contact chamber, vented Pressure Medium Oil - Fuel - Air Connector M4 screw with AMP male 6.3 x 0.8 mm 90° Type of Connection Model: 2B7 HS Code 85365080 EAN Code 4103590689023 Weight 0.14 kg Alternative Notation 230 213 001 011C; 230/213/1/11C Catalog Reference VDO 2014 Vehicle Electronics Catalog: Page 131 - 132 Country of Origin Germany
Product Details
- Brand: VDO
- Component Type: Pressure switch
- Primary Use: Pressure sensing and control for monitoring and warning circuits
- Installation Interface: 1/8 - 27 NPTF male thread
- Electrical Output: Common-ground, single-pole switching signal
Features
- Switches at 12.00 bar for dependable pressure-limit monitoring
- Contact closes as pressure falls, ideal for warning and protection logic
- Designed for use with oil, fuel, or air pressure media
- Secure 1/8-27 NPTF threaded mounting for stable installation
- Supports 6 to 24 V DC systems for flexible integration
Retail Package
- VDO 230 213 001 011C pressure switch
- VDO sensor retail package
- VDO sensors are, unless otherwise noted, delivered without connecting material
-
