ID
1008565
$ 179.52
1-2 weeks delivery time
-
+
The VDO 230-112-005-005C pressure switch is a durable 0.80 bar switchpoint device for hydraulic and engine monitoring systems, designed to trigger a warning or control circuit as pressure falls. With an M10 x 1 male tapered short thread for secure installation and a 2-pole insulated return design, it provides dependable pressure supervision for media such as oil, fuel, and air across 6–24 V DC electrical systems.
- Description
- Ask a Question
-
VDO Pressure Monitoring Switch With 0.80 Bar Switchpoint
Built for dependable system protection, the VDO 230-112-005-005C is a pressure switch used in hydraulic and engine monitoring applications. It is designed so the contact closes as pressure falls, helping trigger alarms, indicator lamps, or control inputs when pressure drops below the defined threshold.
Compatibility
- Hydraulic system pressure control
- VDO engine monitoring
- Pressure media: oil
- Pressure media: fuel
- Pressure media: air
Product Details
- Brand: VDO
- Component Type: Pressure switch
- Switch Function: Contact closes when pressure is less than 0.80 bar
- Signal Type: Dual-pole insulated return
- Application: Engine monitoring and hydraulic system pressure control
Features
- 0.80 bar switchpoint supports precise low-pressure warning and control strategies
- M10 x 1 tapered short thread helps ensure secure, service-friendly installation
- 2-pole insulated return wiring concept supports robust integration in monitored circuits
- Designed for consistent switching behavior in critical operational environments
Technical Specifications

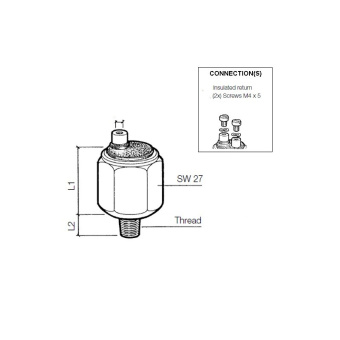

Part Number 230-112-005-005C Category Pressure switches Pressure Switchpoint 0.80 bar ± 0.20 bar Pressure Range 0 - 10 bar Maximum Pressure 30 bar during 2 seconds Thread M10 x 1 male tapered short Length Thread + Nut (L1) 26 mm Thread Length (L2) 11 mm Torque 30 Nm Operating Temperature -25 °C to +120 °C Housing Hex 27 mm - contact chamber unvented Pressure Medium Oil - fuel - air Operating Voltage 6 - 24 V DC Contact Response Slow Switching Capacity Maximum 5 W non-inductive Connector M4 screw (2x) Type of Connection Model: 1D6 HS Code 85365080 EAN Code 4103590688965 Weight 0.08 kg Country of Origin Germany Article Status Orderable Alternative Notation 230 112 005 005C; 230/112/5/5C Catalog Reference VDO 2014 Vehicle Electronics Catalog, Page 133 - 134
Retail Package
- VDO 230-112-005-005C pressure switch
-
