The VDO 230-112-005-003C pressure switch is a robust monitoring device for engine and system pressure control, switching at 1.80 bar (±0.20 bar) with a contact that closes as pressure falls. Built for industrial and automotive use, it features an M10 x 1 male tapered short thread for secure installation, a 2-pole insulated return signal, and operation on 6–24 V DC with up to 5 W non-inductive switching capacity for dependable warning and protection circuits.
- Description
- Ask a Question
-
VDO 1.80 Bar Pressure Monitoring Switch with M10 x 1 Thread
The VDO 230-112-005-003C pressure switch is designed for reliable pressure monitoring in industrial and automotive systems. With a 1.80 bar switching point, it helps safeguard equipment by providing a clear warning signal when pressure drops: the contact closes as pressure falls, making it well-suited for protection and alarm circuits in engine monitoring and general pressure control.
Compatibility
- Industrial machinery pressure monitoring systems
- Automotive engine monitoring applications
Product Details
- Brand: VDO
- Part Number: 230-112-005-003C
- Category: Pressure switches
- Application: VDO engine monitoring
- Pressure Media: Oil
- Pressure Media: Fuel
- Pressure Media: Air
- Retail Package: VDO sensor retail package
- Alternative Notation: 230 112 005 003C
- Alternative Notation: 230/112/5/3C
Features
- Defined warning behavior with a normally closed function (contact closes when pressure is below 1.80 bar)
- 2-pole insulated return signal design for clean integration into monitoring circuits
- Built for system protection across oil, fuel, and air pressure applications
- Secure, service-friendly electrical connection via M4 screw terminals for ring connectors (2x)
Technical Specifications

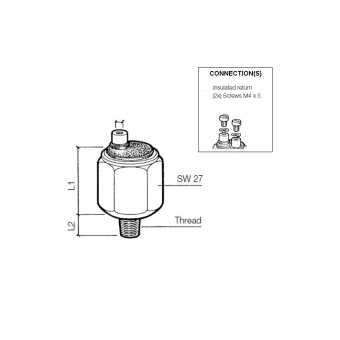

Pressure Switchpoint 1.80 bar ± 0.20 bar Switch Function Contact closes when pressure < 1.80 bar Pressure Range 0 - 12 bar Maximum Pressure 30 bar during 2 seconds Thread M10 x 1 male tapered short Length Thread + Nut (L1) 26 mm Thread Length (L2) 11 mm Torque 30 Nm Operating Temperature -25 °C to +120 °C Housing Hex 27 mm, contact chamber unvented Operating Voltage 6 - 24 V DC Contact Response Slow Switching Capacity Maximum 5 W non-inductive Connector M4 screw with ring terminal (2x) Type of Connection Model: 1E6 HS Code 85365080 EAN Code 4103590948892 Weight 0.08 kg Catalog Reference VDO 2014 Vehicle Electronics Catalog, page 133 - 134
Included in the retail package: VDO 230-112-005-003C pressure switch.
-
