ID
1341779
$ 2,705
1-2 weeks delivery time
-
+
The Simrad NSX 3009 with HDI Medium/High 455/800 9-Pin Probe features a 9" IPS touchscreen, integrated HDI CHIRP, SideScan, and DownScan sonar, 10 Hz GPS, and 3D C-MAP® charting. It supports Wi-Fi, Bluetooth, NMEA 2000®, radar, autopilot, engines, and audio, with a smart setup wizard and wireless updates. It operates on 12 V DC, dimensions 239 x 148.5 x 101.9 mm, weighs 1.2 kg, and has IPX6 & IPX7 protection.
- Description
- Ask a Question
-

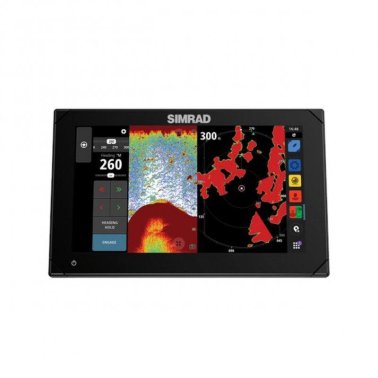

Simrad 000-15375-001 - NSX 3009 Multifunction Display With HDI Med/High 455/800 9Pin Probe
The Simrad NSX 3009 Multifunction Display with HDI Medium/High 455/800 9‑Pin Probe combines a larger 9-inch ultra-bright display with advanced navigation and sonar capabilities. Designed for anglers and cruisers, it provides a responsive and intuitive user experience with precise bottom and fish detection.
Key Features
- Ultra-bright 9" IPS touchscreen with wide viewing angles and excellent sunlight visibility
- Customizable and fast user interface for efficient control
- C-MAP® DISCOVER™ and REVEAL™ charts with immersive 3D mapping
- Integrated HDI Medium/High 455/800 kHz 9‑Pin probe with CHIRP, SideScan, and DownScan Imaging™
- Built-in 10 Hz GPS for high-accuracy navigation
- Complete connectivity via NMEA 2000®, Wi‑Fi, Bluetooth, HALO® radar, autopilot, and onboard systems
- Smart Setup Wizard for simplified commissioning
- Easy wireless software updates via Wi‑Fi
Technical Data
Power Supply DC Operating Voltage 12 V Frequency 40–250 / 455–800 kHz Dimensions 239 x 148.5 mm Depth 101.9 mm Weight 1.2 kg Ingress Protection IPX6 & IPX7 Model NSX 3009 - HDI Med/High Probe
Brand Simrad | Article 000-15375-001
-
