ID
1341782
$ 9,602.87
1-2 weeks delivery time
-
+
The Simrad NSS16 evo3S is a 16" multifunction display with a six-core iMX 8 processor and SolarMAX™ IPS display, supporting Dual CHIRP and StructureScan 3D sonar, 3D charting, and split-screen layouts. It connects to NMEA 2000®, Ethernet, Wi-Fi, Bluetooth, and HDMI, offering smooth multitasking and easy updates. It operates on 12/24 V DC with 45 W consumption, dimensions 436.5 x 256 x 151.8 mm, and weighs 4.7 kg.
- Description
- Ask a Question
-

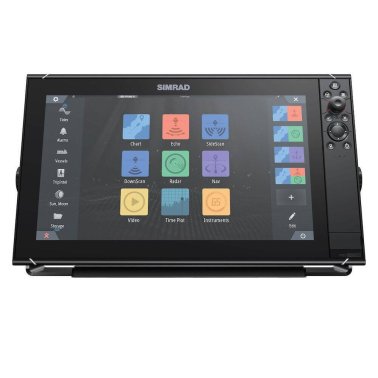

Simrad 000-15407-001 - NSS16 EVO3S Multifunction Display
The Simrad NSS16 evo3S Multifunction Display is designed for premium helm installations requiring a large, ultra-clear screen and uncompromising performance. Featuring a powerful six-core processor and a SolarMAX™ IPS display, it ensures smooth operation, exceptional visibility, and seamless integration with advanced onboard systems.
Key Features
- Six-core iMX 8 processor for fast response and fluid multitasking
- Large 16" SolarMAX™ IPS display with excellent brightness and clarity
- Touchscreen and built-in keypad for reliable control in all weather conditions
- Support for C-MAP®, Navionics®, CMOR, and NV Digital charts with advanced 3D functions
- Integrated high-performance sonar including Dual CHIRP and StructureScan 3D
- Expandable with external sonar modules
- Full connectivity: NMEA 2000®, Ethernet, Wi‑Fi, Bluetooth, and HDMI
- Highly customizable interface with split-screen and full-screen display options
- Simple updates via Wi‑Fi or USB storage
Technical Data
Power Supply DC Operating Voltage 12 / 24 V Power Consumption 45 W Frequency 40–250 / 455–800 kHz Dimensions 436.5 x 256 mm Depth 151.8 mm Weight 4.7 kg Ingress Protection IPX6 & IPX7 Model NSS 16 Evo3S
Brand Simrad | Article 000-15407-001
-
