ID
1341777
$ 3,665.47
1-2 weeks delivery time
-
+
The Simrad NSX 3012 with 3-in-1 Active Imaging Transducer combines a 12" IPS touchscreen with CHIRP, SideScan, and DownScan sonar, 10 Hz GPS, and C-MAP® 3D charting. Connectivity includes Wi-Fi, Bluetooth, NMEA 2000®, radar, autopilot, and audio, with a smart setup wizard and wireless updates. It operates on 12 V DC, measures 309.5 x 208.4 x 143.4 mm, weighs 2.2 kg, and is IPX6 & IPX7 rated.
- Description
- Ask a Question
-

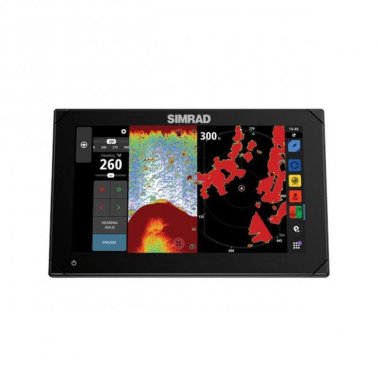

Simrad 000-15370-001 - NSX 3012 Multifunction Display With 3-In-1 Active Imaging Transducer
The Simrad NSX 3012 Multifunction Display with 3-in-1 Active Imaging Transducer combines a large 12-inch ultra-bright touchscreen with powerful navigation and sonar capabilities. Designed for demanding marine environments, it provides exceptional clarity, speed, and seamless system integration.
Key Features
- Large 12" IPS touchscreen with outstanding brightness and wide viewing angles
- Modern, intuitive, and fully customizable user interface
- C-MAP® DISCOVER™ and REVEAL™ chart compatibility with immersive 3D mapping
- Integrated 3-in-1 Active Imaging transducer with CHIRP, SideScan, and DownScan Imaging™
- Built-in 10 Hz GPS for accurate navigation and positioning
- Full system connectivity including NMEA 2000®, Wi-Fi, Bluetooth, radar, autopilot, and audio
- Smart Setup Wizard for fast and straightforward installation
- Wireless software updates via integrated Wi-Fi
Technical Data
Power Supply DC Operating Voltage 12 V Frequency 40–250 / 455–800 kHz Dimensions 309.5 x 208.4 mm Depth 143.4 mm Weight 2.2 kg Ingress Protection IPX6 & IPX7 Model NSX 3012 - 3-In-1 Active Imaging Transducer
Brand Simrad | Article 000-15370-001
-
