ID
1341781
$ 6,564.32
1-2 weeks delivery time
-
+
The Simrad NSS12 evo3S is a 12" multifunction display with a six-core iMX 8 processor, SolarMAX™ IPS display, and advanced integrated sonar including Dual CHIRP, StructureScan 3D, SideScan, ForwardScan, and Active Imaging™. It offers split screens, 3D charting, and connectivity via NMEA 2000®, Ethernet, Wi-Fi, Bluetooth, and HDMI. It runs on 12/24 V DC with 30 W consumption, dimensions 351.5 x 225.3 x 151.8 mm, and weighs 3.1 kg.
- Description
- Ask a Question
-

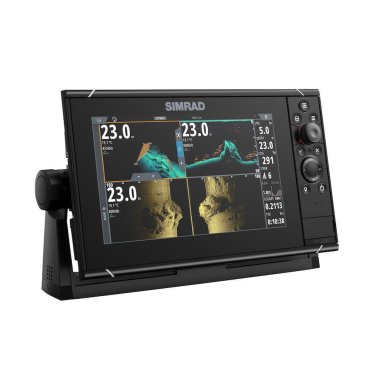

Simrad 000-15406-002 - NSS12 EVO3S Multifunction Display
The Simrad NSS12 evo3S Multifunction Display is a high-end chartplotter engineered to deliver an ultra-smooth and responsive navigation experience, even in demanding marine environments. Powered by an ultra-fast six-core processor and equipped with a SolarMAX™ IPS display, it combines speed, clarity, and advanced connectivity with all onboard systems.
Key Features
- Ultra-fast six-core iMX 8 processor for instant response and smooth multitasking
- 12" SolarMAX™ IPS display, ultra-bright and readable with polarized sunglasses
- Touchscreen with integrated keypad for precise control in all conditions
- Compatible with C-MAP®, Navionics®, CMOR, and NV Digital charts with 3D views and autorouting
- High-performance integrated sonar: Dual CHIRP, StructureScan 3D, SideScan, ForwardScan, Active Imaging™
- Support for external sonar modules
- Extensive connectivity including NMEA 2000®, Ethernet, Wi‑Fi, Bluetooth, and HDMI
- Customizable interface with split screens, multiple pages, and full-screen radar
- Easy software updates via Wi‑Fi or USB flash drive
Technical Data
Power Supply DC Operating Voltage 12 / 24 V Power Consumption 30 W Frequency 40–250 / 455–800 kHz Dimensions 351.5 x 225.3 mm Depth 151.8 mm Weight 3.1 kg Ingress Protection IPX6 & IPX7 Model NSS 12 Evo3S
Brand Simrad | Article 000-15406-002
-
