ID
1341367
$ 3,316.21
1-2 weeks delivery time
-
+
The Lowrance ActiveTarget 2 system delivers high-resolution, real-time imaging with Forward, Down, and Scout views, allowing anglers to see fish reacting to lures. It is compatible with HDS LIVE, HDS Carbon, and Elite FS systems, offering optional multiple-view functionality with a second transducer.
- Description
- Ask a Question
-

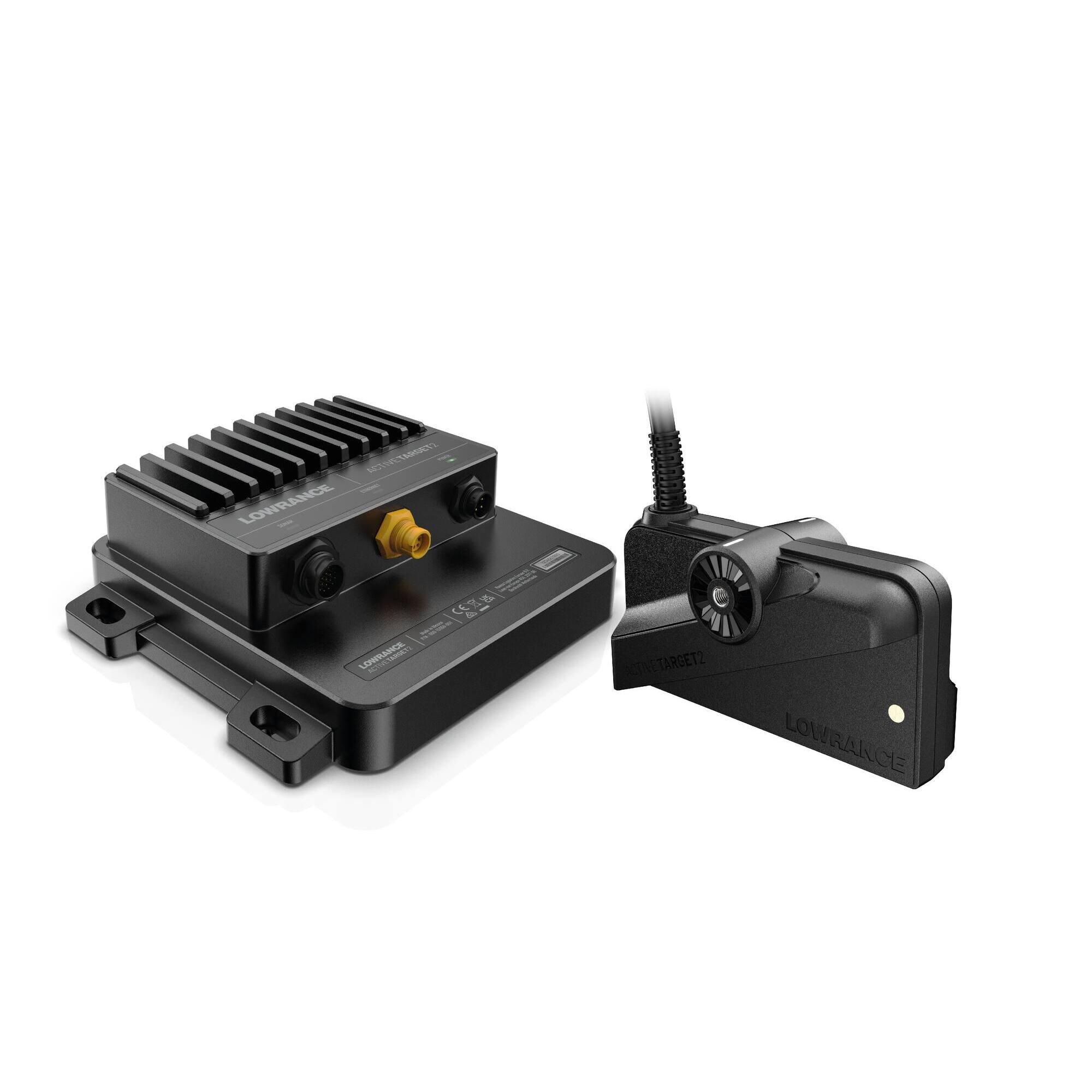

Lowrance 000-15959-001 - ActiveTarget 2 (Module + Transducer + Mounts)
The Lowrance ActiveTarget® 2 offers the highest resolution, widest, and clearest live views of fish and underwater structures. With real-time imaging, anglers can observe fish reacting to their lures and make quick adjustments for better results. This advanced system provides multiple viewing options, including Forward, Down, and Scout views. With an optional second ActiveTarget 2 transducer, users can enable Forward+Back and Scout Wide views for enhanced bait tracking. The system is compatible with HDS LIVE, HDS Carbon, and Elite FS.
Main Features
- High-resolution, real-time underwater imaging
- Wide and clear live views of fish and structures
- Forward, Down, and Scout views supported
- Simultaneous multiple views with optional second transducer
- Compatible with HDS Pro, HDS LIVE, HDS Carbon, and Elite FS
Connectivity
Ethernet Ports 1 x 100 Mbit Ethernet Port
Electrical
Power Supply 10.8 VDC - 31.2 VDC Power Consumption (Max/Typical) 1.5A @ 13.8 VDC Recommended Fuse Rating 3A
Environment
Operating Temperature -15°C to 55°C (5°F to 131°F) Storage Temperature -30°C to 70°C (-22°F to 158°F) Humidity 95% RH at 60°C for 18 hours Shock / Vibration 100,000 cycles of 20 G Waterproof Rating IP67
Physical Specifications
Module Dimensions 219.3 mm x 192.1 mm x 72.9 mm (8.63" x 7.56" x 2.86") Transducer Dimensions 149.8 mm x 82.4 mm x 58.0 mm (5.90" x 3.24" x 2.28") Module Weight 1.86 kg (4.12 lbs) Transducer Weight 1.21 kg (2.67 lbs) Mounting Type Module: Surface Mount, Transducer: Bracket Mount
Interface
Ethernet Compatibility HDS Pro, HDS Live, HDS Carbon, Elite FS
Brand: Lowrance
Barcode: 9420064128235 -
