ID
1341364
$ 1,482.60
1-2 weeks delivery time
-
+
The Lowrance Elite FS 7 without transducer is a 7-inch touchscreen fishfinder and chartplotter offering full compatibility with Lowrance sonar systems and advanced charting, ideal for users who want to customize their sonar setup or use their existing transducers.
- Description
- Ask a Question
-

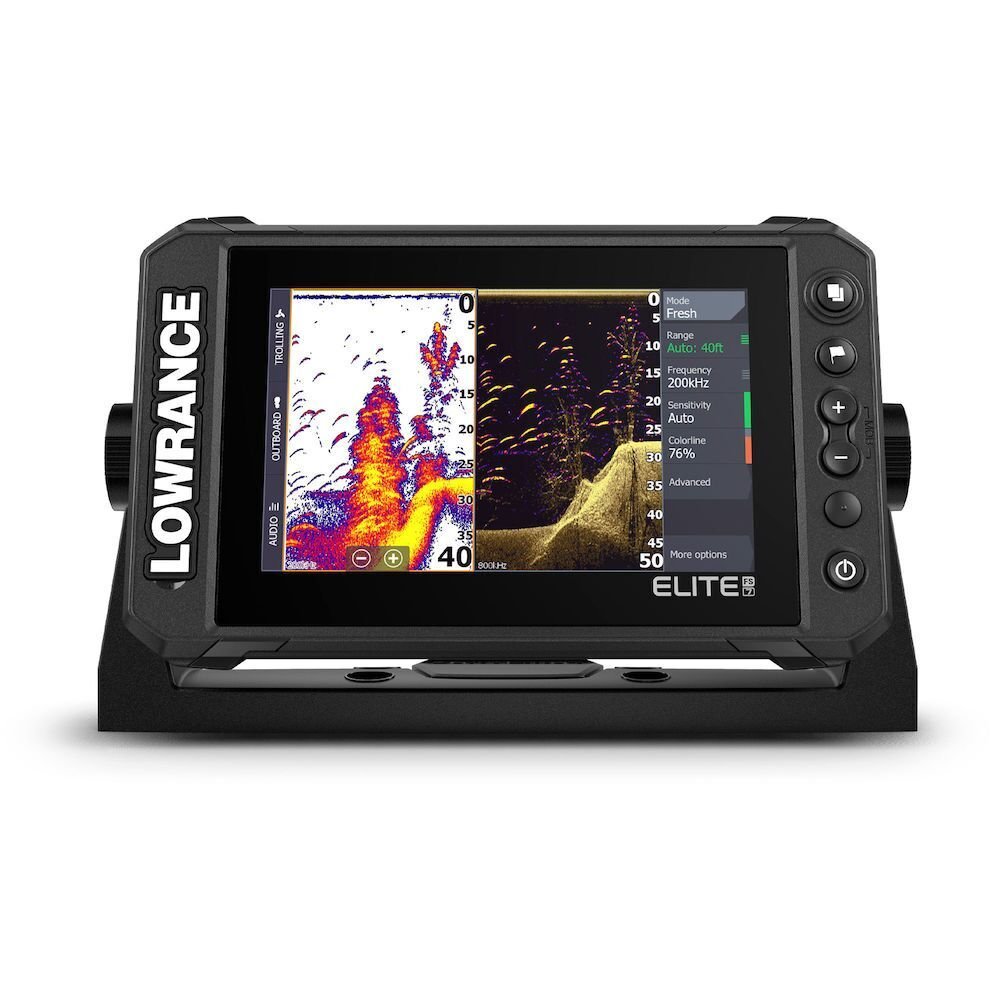

Lowrance 000-15702-001 - Fishfinder Elite FS 7 Without Transducer
The Lowrance Elite FS 7 without transducer is an advanced fishfinder and chartplotter designed for anglers who want full control over their sonar setup. It delivers the same powerful performance as the transducer-equipped version, with support for ActiveTarget® 2 Live Sonar, Active Imaging™ HD, and a wide range of premium chart options. This version is ideal for users who already own compatible transducers or want to customize their sonar system.
Note: Active Imaging HD requires the S3100 Module.
Main Features
- 7-inch touchscreen with high visibility in sunlight
- Compatible with advanced Lowrance sonar technologies
- Extensive chart compatibility
- Integrated GPS with fast position updates
- Transducer not included
Display
Screen Size 7" Resolution 800 x 480 px Screen Type Tactile Backlight Color Pure White LED Screen Brightness >1200 nits Viewing Angles 50° top / 60° bottom / 70° left-right
Sonar
Frequency 40-250 / 455-800 kHz
Connectivity
Bluetooth Integrated Bluetooth 4.0 with Bluetooth Classic support Wi-Fi Internal 802.11b/g/n Ethernet Ports 1 x 100 Mbit NMEA 0183 Not supported NMEA 2000 1 x Micro-C Interface NMEA2000 & Ethernet PC Connectivity None SD Card Storage 1 micro SD card up to 32 GB Video None
Cartography
Charts Supported C-MAP MAX N, MAX N+, C-MAP Genesis, C-MAP Precision Contour HD (Amer only), Navionics Gold, Navionics+, Platinum+, Insight Pro, Insight HD, Lowrance Regional Mapping Partners
Electrical
Supply Voltage 12 V DC (10.8–17 VDC) Power Consumption 2.0 A @ 13 VDC Recommended Fuse Rating 3 A
GPS
Correction DGPS, WAAS, MSAS, EGNOS, GLONASS Receiver Channels 16 Position Accuracy 20 m RMS Time To First Fix 30 s Update Rate 10 Hz
Environment
Operating Temperature -15°C to 55°C Storage Temperature -20°C to 60°C Humidity 95% RH at 60°C for 18 hours Shock / Vibration 100,000 cycles of 20 G Protection Rating IPX6 & IPX7 (card door closed)
Physical Data
Depth 95.4 mm Weight 0.9 kg
Brand: Lowrance
-
