ID
1341369
$ 3,840.10
1-2 weeks delivery time
-
+
The Lowrance HDS PRO 10 features a 10-inch touchscreen with ActiveTarget® 2 Live Sonar, Active Imaging™ HD, detailed C-MAP® charts, full network integration, and GPS with DGPS and WAAS for advanced fishing performance.
- Description
- Ask a Question
-

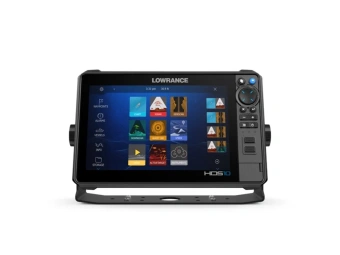

Lowrance 000-15985-001 - Fishfinder HDS Pro 10 With Active Imaging™ HD

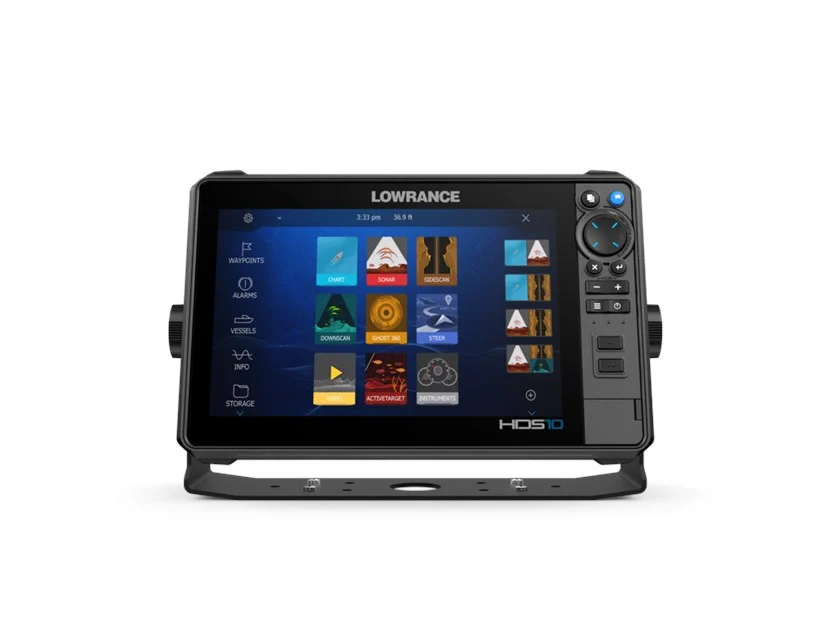

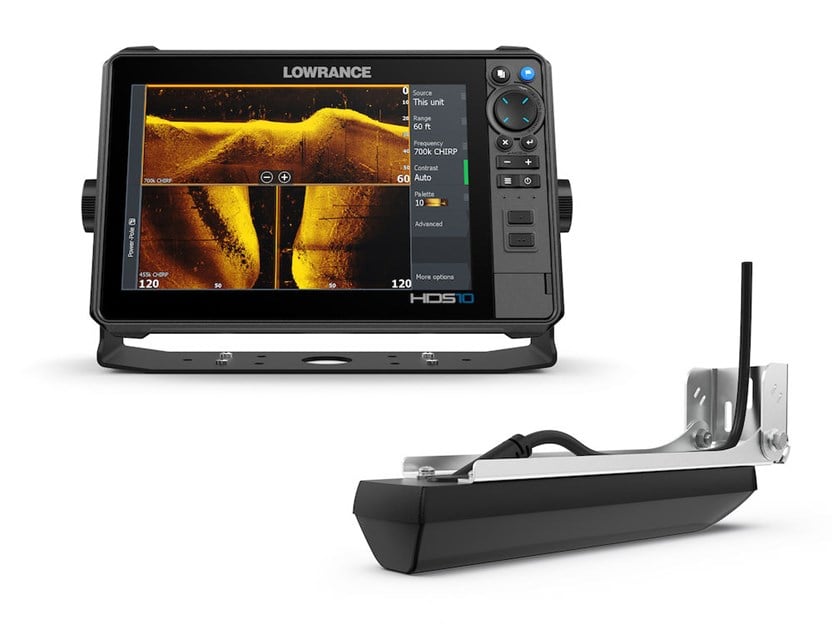

The Lowrance HDS PRO 10 is a premium fishfinder/chartplotter with a larger 10-inch display and advanced sonar capabilities. It features ActiveTarget® 2 Live Sonar and Active Imaging™ HD for crystal-clear underwater imaging, along with extensive chart compatibility and full network integration for seamless control across your boat.
Main Features
- 10-inch high-resolution touchscreen
- ActiveTarget® 2 Live Sonar and Active Imaging™ HD
- Supports detailed C-MAP® charts
- Full network integration with NMEA 2000 and Ethernet
- Integrated GPS with DGPS and WAAS correction
Display
Screen Size 10" Resolution 1280 x 800 px Backlight Color Pure White LED Screen Brightness >1200 nits Viewing Angles 80° top/bottom, 80° left/right
Connectivity
Bluetooth Integrated Bluetooth 4.0 Wi-Fi Internal 802.11b/g/n, compatible with WiFi-1 Module Ethernet Ports 1 x 100 Mbit, supports up to 6 MFDs NMEA 0183 TX/RX GPS, Navigation, Sonar, Compass, Wind, AIS, DSC NMEA 2000 1 x Micro-C SD Card Storage 2 micro SD cards, up to 32 GB Video Input: Composite video RCA (via optional adapter)
Cartography
Charts Supported C-MAP Reveal, Discover, MAX N, Genesis, Navionics Gold, NAV+, Platinum+, Insight Pro/HD
Electrical
Power Supply 12 VDC (10.8–17 VDC) Power Consumption (Max) 2.9 A @ 13.8 VDC Power Consumption (Typical) 2.0 A @ 13 VDC Recommended Fuse Rating 3A
Environment
Operating Temperature -15°C to 55°C (5°F to 131°F) Storage Temperature -20°C to 60°C (4°F to 140°F) Humidity 95% RH at 66°C for 48 hours Shock / Vibration 100,000 cycles of 20 G Protection Rating IPX7
GPS
Correction DGPS, WAAS Receiver Channels 16 Position Accuracy 20 m RMS Time to First Fix 30 s Update Rate 10 Hz
Physical Specifications
Weight 1.6 kg Depth 82.57 mm
Brand: Lowrance
Barcode: 9420064129652 -
