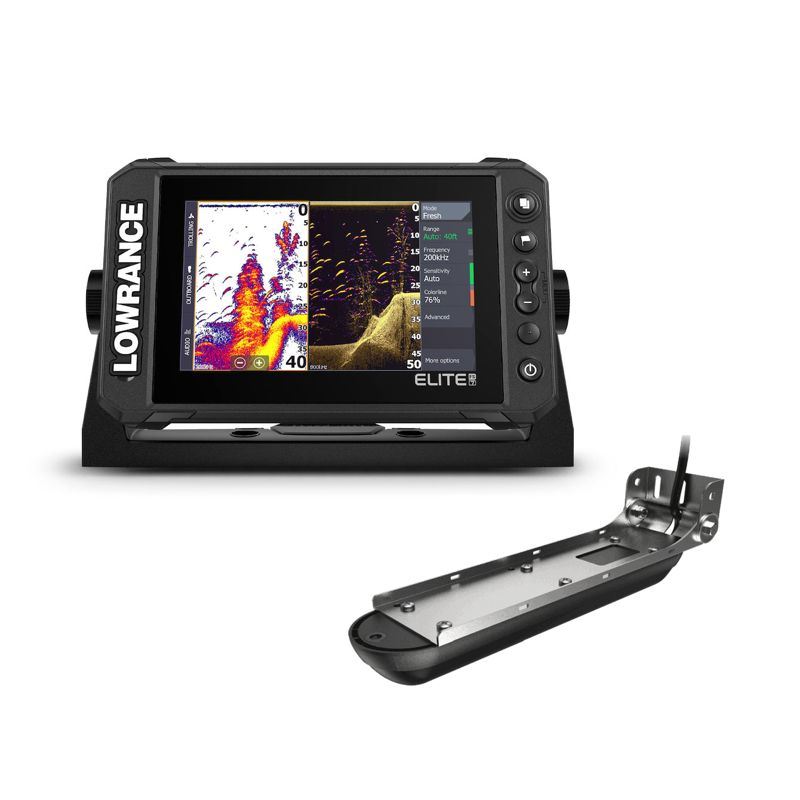

Lowrance 000-15689-001 - Fishfinder Elite 7 FS With Active Imaging 3-In-1 Transducer

ID 1341361

$ 1,744.55

1-2 weeks delivery time

- +

Add to cart

The Lowrance Elite FS 7 Fishfinder offers a user-friendly 7-inch touchscreen with ActiveTarget™ Live Sonar and Active Imaging™ 3-in-1 technology, including CHIRP, SideScan, and DownScan Imaging. FishReveal helps identify fish clearly, and it supports multiple chart options with NMEA 2000, Ethernet, and wireless connectivity.

Description
Ask a Question

Lowrance 000-15689-001 - Fishfinder Elite 7 FS With Active Imaging 3-In-1 Transducer

The Lowrance Elite FS 7 Fishfinder combines proven sonar technology with an easy-to-use and affordable touchscreen display. Designed to help anglers find and catch more fish, it supports ActiveTarget™ Live Sonar and delivers high-resolution Active Imaging™ 3-in-1 with CHIRP, SideScan, and DownScan Imaging.

With FishReveal technology, anglers can clearly distinguish fish from structure on detailed DownScan images. The system also supports a wide range of chart options, making navigation and mapping simple and efficient.

Main Features

ActiveTarget™ Live Sonar ready
Active Imaging™ 3-in-1 ready (CHIRP, SideScan, DownScan)
FishReveal™ for improved fish identification
Worldwide basemap included
Compatible with C-MAP, Navionics, and more
High-resolution multi-touch touchscreen
NMEA 2000, Ethernet, and wireless connectivity
Touchscreen control of Power-Pole® anchors and Ghost® trolling motors

What’s In The Box

Power only cable (HDS / Elite / Hook / Mark)
FUSE-1 set (3 x 3A fuses)
Active Imaging 3-in-1 transducer
HDS-7 LIVE / Elite FS™ 9 bracket
Elite FS™ 7 sun cover

Technical Specifications

Supply Voltage	12 V DC
Power Consumption	19.4 W
Screen Type	Touchscreen
Screen Size	7"
Resolution	800 x 480 px
Frequency	83 / 200 / 455 / 800 kHz
Protection Rating	IPX6 & IPX7
Interface	NMEA 2000 & Ethernet
Depth Sensor Type	Transom mount
Weight	0.9 kg
Depth	95.4 mm

Brand: Lowrance
Barcode: 9420064116911
