The BEP 185050F-01-1 is a heavy-duty single pole thermal type circuit breaker rated at 50A for 30V DC systems, built with a Type III switchable reset mechanism that can be manually switched to isolate the circuit. Designed for surface mount installation, it features IP67 ingress protection and a black UL-rated 94V0 thermoplastic housing for durability in demanding environments. This breaker is suitable for auxiliary and accessory circuits in marine, trucks, buses, and RVs, including sealed use in engine compartments and bilge areas.
- Description
- Ask a Question
-

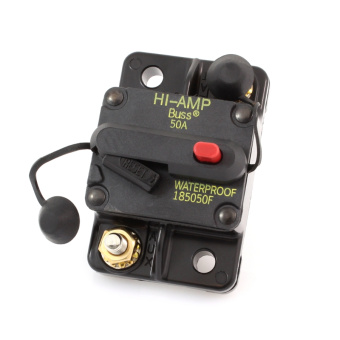

BEP 185050F-01-1 – HD Thermal Circuit Breaker 50A, Switchable Reset, Surface Mount, 30V DC, IP67
The BEP 185050F-01-1 is a heavy-duty single pole thermal type circuit breaker designed for reliable protection of auxiliary and accessory circuits in DC electrical systems. This model is rated at 50A and is intended for 30V DC applications.
This breaker uses a Type III switchable reset mechanism and can be manually switched to isolate the circuit. It is part of the BEP Series 185 and is designed for demanding installations in marine, automotive, and other high-performance environments, including sealed locations such as engine compartments and bilge areas.
Key Features
- Product Number: 185050F-01-1
- Series: Series 185
- Type: Hi Amp
- Rated Current: 50A
- Rated Voltage: 30V DC
- Reset Method: Type III – Switchable Reset
- Mounting Style: Surface Mount
- Ingress Protection Rating: IP67
- Material: Black UL-rated 94V0 thermoplastic
Termination
- Termination Type: 1/4"-28 Threaded Stud
Applications
- Auxiliary and accessory circuits
- Marine electrical systems
- Trucks, buses, and RV applications
- Sealed installations such as engine compartments and bilge areas
Product Summary
Specification Value Model BEP 185050F-01-1 Rated Current 50A Rated Voltage 30V DC Reset Method Type III – Switchable Reset Mounting Surface Mount Ingress Protection IP67 Termination 1/4"-28 Threaded Stud Material Black UL-rated 94V0 thermoplastic -
