Osculati Stainless Steel Double Ball Detent Quick Release Pins Ø6 mm, 12–64 mm Useful Length, Pack of 10 pcs

ID 1402515

$ 33.44

1-2 weeks delivery time

Length, mm:

Osculati stainless steel double ball detent pins feature two spring-loaded retaining balls at one end and a pull ring at the other, providing convenient fastening without screws. Designed for compatible marine equipment, including canopy support forks, boarding ladders, boom fittings and anchor chain stoppers, these self-locking pins have a consistent diameter of 6 mm and are available in five useful lengths from 12 to 64 mm. Total lengths range from 25 to 76 mm. Each variant is supplied in an ordering box of 10 pieces and is identified by an individual Osculati part number.

Description
Ask a Question

Osculati Stainless Steel Double Ball Detent Quick Release Pins Ø6 mm

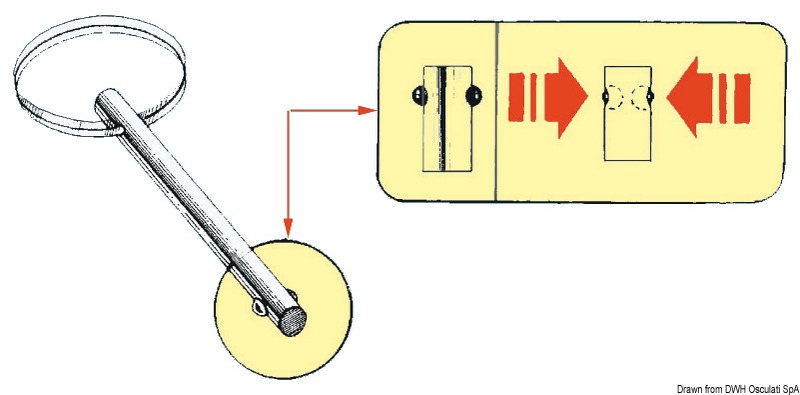

Osculati self-locking pins are manufactured from stainless steel and feature a double ball detent locking mechanism. Two spring-loaded balls at one end of the shaft provide retention, while a ring at the opposite end allows the pin to be handled and removed conveniently.

The spring-loaded balls engage after the pin is inserted through compatible mounting holes, helping prevent unintended withdrawal. This design provides a removable fastening solution without the need to install retaining screws or separate split pins.

According to the Osculati catalogue, these pins are suitable for canopy support forks (46.662.00, 46.662.20, 46.662.22, 46.653.20 and 46.653.22), boarding ladders, boom fittings, anchor chain stoppers and other compatible marine equipment.

All five variants have a nominal shaft diameter of 6 mm. Their total lengths range from 25 to 76 mm, while useful lengths range from 12 to 64 mm. Each size is supplied in an ordering box of 10 pieces.

Technical Specifications

Product Type	Self-Locking Pin / Double Ball Detent Pin
Brand	Osculati
Material	Stainless Steel
Locking Mechanism	Double Spring-Loaded Ball Detent
Handle	Pull Ring
Shaft Diameter	6 mm
Total Length	25, 38, 51, 64, 76 mm
Useful Length	12, 25, 38, 51, 64 mm
Ordering Quantity	10 pcs per box
Number of Variants	5

Features and Applications

Stainless steel construction for corrosion resistance.
Two spring-loaded retaining balls for secure pin retention.
Integrated pull ring for convenient handling and removal.
Allows removable fastening without retaining screws.
Suitable for compatible canopy support forks and boarding ladders.
Can be used with suitable boom fittings and anchor chain stoppers.
Available in five useful lengths with a common 6 mm diameter.
Supplied in ordering boxes of 10 pieces.

Available Sizes and Part Numbers

Osculati Part No.	Diameter	Total Length	Useful Length	Box Quantity
37.264.10	6 mm	25 mm	12 mm	10 pcs
37.264.15	6 mm	38 mm	25 mm	10 pcs
37.264.20	6 mm	51 mm	38 mm	10 pcs
37.264.25	6 mm	64 mm	51 mm	10 pcs
37.264.30	6 mm	76 mm	64 mm	10 pcs

Size Selection

Select the useful length according to the thickness of the connected components and the mounting arrangement. All variants have a 6 mm shaft diameter. The total length includes portions of the pin outside the useful fastening length, so these two measurements should not be confused.

Ensure that the selected pin fits the mounting holes and that both spring-loaded retaining balls can engage correctly after installation.
