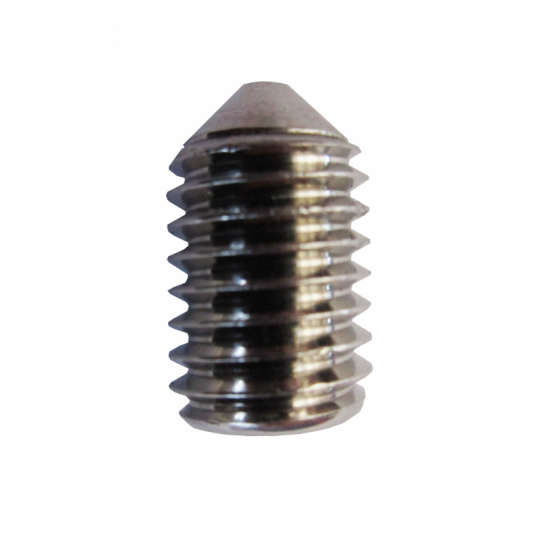

DIN 914 A2 Stainless Steel Hex Socket Set Screws with Cone Point M2–M10, 3–40 mm

ID 1402181

$ 72.69

1-2 weeks delivery time

Diameter, mm:

Length, mm:

DIN 914 hex socket set screws are manufactured from A2 stainless steel and feature a headless design with an internal hexagonal drive and a cone-shaped point. The pointed end provides concentrated contact for securing components such as collars, hubs and other mechanical parts, while the internal hex socket allows installation using a matching Allen key. Their A2 stainless steel construction provides corrosion resistance for general mechanical and assembly applications. The range includes 29 dimensional configurations across seven nominal metric thread sizes — M2, M3, M4, M5, M6, M8 and M10 — with lengths from 3 to 40 mm depending on the selected thread size.

Description
Ask a Question

DIN 914 A2 Stainless Steel Hex Socket Set Screws with Cone Point M2–M10, 3–40 mm

DIN 914 hex socket set screws are manufactured from A2 stainless steel and designed for securing components in threaded mechanical assemblies. They feature a headless cylindrical body, an internal hexagonal drive and a cone-shaped point for concentrated contact with the mating component.

The cone point is designed to engage the contact surface and help prevent relative movement between assembled parts. These screws are commonly used for positioning and retaining components such as shaft collars, hubs and other mechanical fittings. The pointed end may leave an indentation on the contact surface, so suitability should be considered for the intended application.

The internal hexagonal socket allows installation and adjustment using a matching Allen key or hex driver. A2 stainless steel provides corrosion resistance for general indoor and outdoor applications where this material grade is suitable.

The range includes 29 dimensional configurations across seven nominal metric thread sizes: M2, M3, M4, M5, M6, M8 and M10. Available lengths range from 3 to 40 mm, depending on the selected thread size. Each version has an individual FNI part number.

Technical Specifications

Product Type	Socket Set Screw
Standard	DIN 914
Material	A2 Stainless Steel
Head Type	Headless
Drive Type	Internal Hexagon Socket
Point Type	Cone Point
Thread Type	Metric
Available Thread Sizes	M2, M3, M4, M5, M6, M8, M10
Available Length Range	3–40 mm
Number of Variants	29
Dimensions Format	Nominal Thread Size × Length

Features and Applications

Manufactured from corrosion-resistant A2 stainless steel.
DIN 914 headless set screw design.
Cone-shaped point provides concentrated contact for component retention.
Internal hexagon socket for installation with an Allen key.
Metric threads for use in compatible threaded holes.
Suitable for securing and positioning mechanical components.
Available in seven metric thread sizes and 29 dimensional configurations.

Available Sizes and Part Numbers

Thread Size	Length	FNI Part No.
M2	3 mm	Y91423
M2	4 mm	Y91424
M3	10 mm	Y914310
M3	12 mm	Y914312
M3	4 mm	Y91434
M4	16 mm	Y914416
M4	4 mm	Y91444
M4	5 mm	Y91445
M4	8 mm	Y91448
M5	10 mm	Y914510
M5	12 mm	Y914512
M5	16 mm	Y914516
M5	20 mm	Y914520
M5	5 mm	Y91455
M5	6 mm	Y91456
M5	8 mm	Y91458
M6	10 mm	Y914610
M6	12 mm	Y914612
M6	16 mm	Y914616
M6	20 mm	Y914620
M6	6 mm	Y91466
M6	8 mm	Y91468
M8	10 mm	Y914810
M8	20 mm	Y914820
M8	30 mm	Y914830
M8	40 mm	Y914840
M8	8 mm	Y91488
M10	16 mm	Y9141016
M10	20 mm	Y9141020

Size Selection

Select the required metric thread size and screw length according to the component being secured. The thread must match the corresponding threaded hole. Available lengths vary by thread size, so refer to the dimensional combinations and individual FNI part numbers listed above.
