ID
1402217
$ 22.66
1-2 weeks delivery time
Diameter, mm:
- 3
- 4
- 5
- 6
- 8
- 10
- 12
- 14
Length, mm:
- 8
- 10
- 16
- 20
- 25
- 30
- 35
- 40
- 45
- 50
- 55
- 60
- 70
- 80
- 90
- 100
- 120
DIN 933 fully threaded hex head bolts are manufactured from A2 stainless steel and designed for secure mechanical fastening with compatible metric nuts or threaded holes. Each bolt features an external hexagonal head for tightening with a suitable wrench or socket and a fully threaded shank for threaded engagement along its usable length. The A2 stainless steel construction provides corrosion resistance for general indoor and outdoor assembly applications. The range includes 59 dimensional configurations across eight nominal metric thread sizes — M3, M4, M5, M6, M8, M10, M12 and M14 — with available lengths from 8 to 120 mm depending on the selected thread size. Each variant has an individual FNI part number.
- Description
- Ask a Question
-

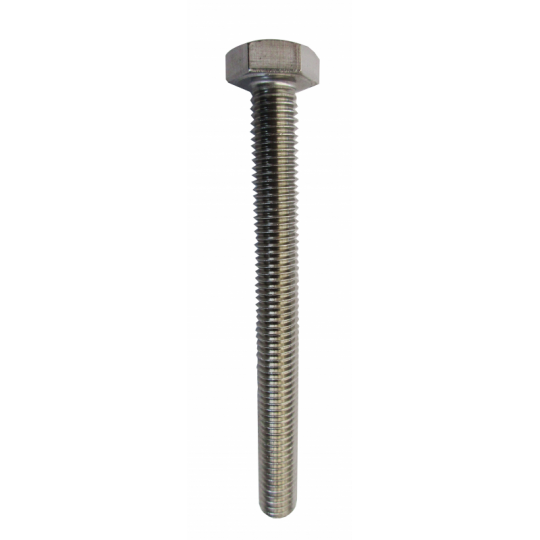

DIN 933 A2 Stainless Steel Fully Threaded Hex Head Bolts M3–M14, 8–120 mm
DIN 933 hex head bolts are manufactured from A2 stainless steel and designed for mechanical fastening applications requiring a fully threaded shank. The external hexagonal head allows tightening and removal using a suitable wrench or socket.
The full-length metric thread provides threaded engagement with compatible nuts or pre-threaded holes. Unlike partially threaded DIN 931 bolts, these DIN 933 bolts do not have a long, smooth unthreaded shank section.
A2 stainless steel provides corrosion resistance for general mechanical, equipment and assembly applications, including indoor and outdoor installations where this stainless steel grade is suitable.
The range includes 59 dimensional configurations with eight nominal metric thread sizes from M3 to M14. Available lengths range from 8 to 120 mm depending on thread size. Each version is identified by an individual FNI part number.
Technical Specifications
Product Type Hex Head Bolt Standard DIN 933 Catalogue Designation TE Material A2 Stainless Steel Head Type External Hexagonal Head Drive Type External Hexagon Thread Type Metric, Fully Threaded Available Thread Sizes M3, M4, M5, M6, M8, M10, M12, M14 Available Length Range 8–120 mm Number of Variants 59 Dimensions Format Nominal Thread Size × Length
Features and Applications
- A2 stainless steel construction provides corrosion resistance.
- DIN 933 fully threaded hexagonal head bolt design.
- External hexagonal head for tightening with a wrench or socket.
- Metric thread for use with compatible nuts or threaded holes.
- Suitable for general mechanical, equipment and assembly applications.
- Available in eight nominal thread sizes and 59 dimensional configurations.
Available Sizes and Part Numbers
Thread Size Length FNI Part No. M3 10 mm Y933310 M3 20 mm Y933320 M4 10 mm Y933410 M4 16 mm Y933416 M4 20 mm Y933420 M4 25 mm Y933425 M4 30 mm Y933430 M4 35 mm Y933435 M4 40 mm Y933440 M5 10 mm Y933510 M5 20 mm Y933520 M5 25 mm Y933525 M5 30 mm Y933530 M5 35 mm Y933535 M5 40 mm Y933540 M5 45 mm Y933545 M5 50 mm Y933550 M5 60 mm Y933560 M5 8 mm Y93358 M6 10 mm Y933610 M6 100 mm Y9336100 M6 16 mm Y933616 M6 20 mm Y933620 M6 25 mm Y933625 M6 30 mm Y933630 M6 35 mm Y933635 M6 40 mm Y933640 M6 50 mm Y933650 M6 55 mm Y933655 M6 60 mm Y933660 M6 70 mm Y933670 M6 80 mm Y933680 M8 120 mm Y9338120 M8 16 mm Y933816 M8 20 mm Y933820 M8 25 mm Y933825 M8 30 mm Y933830 M8 40 mm Y933840 M8 50 mm Y933850 M8 60 mm Y933860 M8 70 mm Y933870 M8 80 mm Y933880 M8 90 mm Y933890 M10 100 mm Y93310100 M10 120 mm Y93310120 M10 25 mm Y9331025 M10 30 mm Y9331030 M10 40 mm Y9331040 M10 50 mm Y9331050 M10 60 mm Y9331060 M10 70 mm Y9331070 M10 80 mm Y9331080 M12 100 mm Y93312100 M12 120 mm Y93312120 M12 40 mm Y9331240 M12 50 mm Y9331250 M12 60 mm Y9331260 M12 80 mm Y9331280 M14 40 mm Y9331440
Size Selection
Select the nominal metric thread size and bolt length required for the intended assembly. The bolt must match the corresponding nut or threaded hole. Not every length is available for every thread size; refer to the available dimensional combinations and individual FNI part numbers listed above.
-
