ID
1396064
$ 52.22
1-2 weeks delivery time
Size, mm:
- 220
- 300
- 450
The Roca rounded stainless steel handrail is available in 220 mm, 300 mm and 450 mm versions, all with a Ø25 mm diameter and 6 mm mounting thread. The 220 mm model has a 195 mm centre distance, 220 mm overall length and 60 mm height. The 300 mm and 450 mm versions have centre distances of 300 mm and 450 mm, overall lengths of 325 mm and 475 mm, and a height of 75 mm. The 300 mm and 450 mm versions are straight handrails, with AISI 316 stainless steel specified for these models.
- Description
- Ask a Question
-

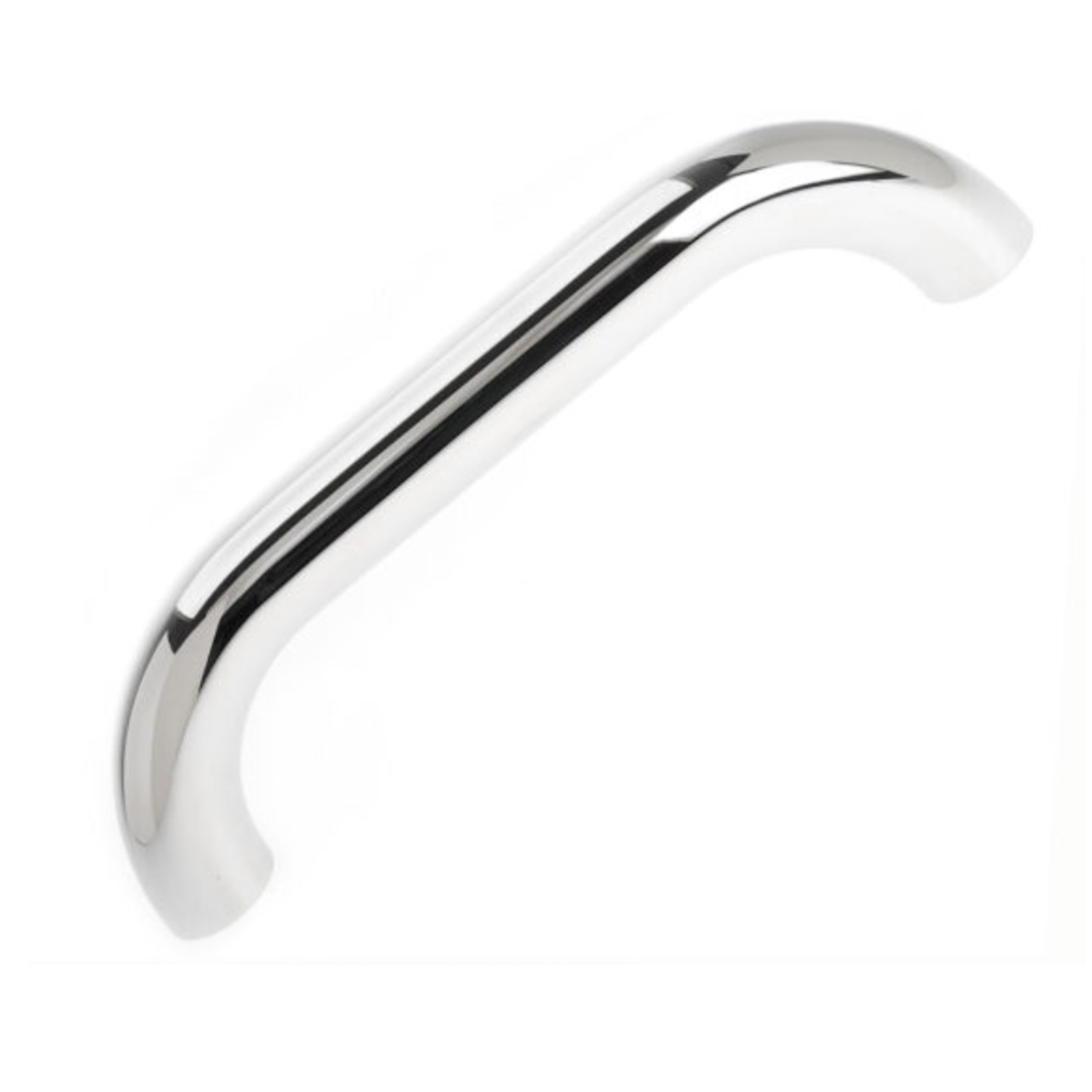

Roca Rounded Stainless Steel Boat Handrail Ø25 mm – 220 / 300 / 450 mm
The Roca rounded stainless steel handrail range includes three sizes for marine installations: 220 mm, 300 mm and 450 mm. All versions use a Ø25 mm diameter and a 6 mm mounting thread, while their centre distance, overall length and height vary according to the selected model.
The compact 220 mm version has a 195 mm centre distance and a height of 60 mm. The larger 300 mm and 450 mm straight versions have heights of 75 mm and overall lengths of 325 mm and 475 mm respectively. AISI 316 stainless steel is specified for the 300 mm and 450 mm versions.
Key Features
- Rounded stainless steel handrail
- Available in 220 mm, 300 mm and 450 mm versions
- Diameter: Ø25 mm
- Thread size: 6 mm
- Centre distance from 195 mm to 450 mm depending on version
- Overall length from 220 mm to 475 mm
- Height: 60 mm or 75 mm depending on version
- 300 mm and 450 mm versions have a straight execution
- 300 mm and 450 mm versions specified in AISI 316 stainless steel
Available Versions
Order No. Supplier Code Version Centre Distance Overall Length Height Diameter Thread 00304342 420472 220 mm 195 mm 220 mm 60 mm Ø25 mm 6 mm 00304325 423113 300 mm 300 mm 325 mm 75 mm Ø25 mm 6 mm 00304326 423114 450 mm 450 mm 475 mm 75 mm Ø25 mm 6 mm
Technical Specifications
Specification 220 mm 300 mm 450 mm Supplier Code 420472 423113 423114 Centre Distance 195 mm 300 mm 450 mm Overall Length 220 mm 325 mm 475 mm Height 60 mm 75 mm 75 mm Diameter Ø25 mm Ø25 mm Ø25 mm Thread Size 6 mm 6 mm 6 mm Execution - Straight Straight -
