ID
1396244
$ 29.78
1-2 weeks delivery time
Type:
- Terminal
- Central
Diameter, mm:
- 22
- 25
The Osculati precision-cast solid handrail support is manufactured from AISI 316 stainless steel and is available in terminal and central versions for Ø22 mm and Ø25 mm handrail tubes. The Ø22 mm models have a Ø30 mm base and 55 mm height, while the Ø25 mm models have a Ø35 mm base and 65 mm height. All versions use 8 mm studs, with optional stud bolts and nuts available under article 40.142.08.
- Description
- Ask a Question
-

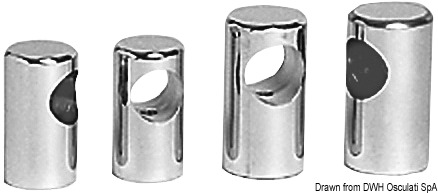

Osculati Precision-Cast AISI 316 Solid Handrail Support – Terminal / Central, Ø22/25 mm
The Osculati solid handrail support range is manufactured from AISI 316 stainless steel and is available in terminal and central configurations for Ø22 mm and Ø25 mm handrail tubing.
The Ø22 mm versions have a Ø30 mm base and a height of 55 mm. The Ø25 mm versions have a Ø35 mm base and a height of 65 mm. All variants are designed for 8 mm studs, with optional stud bolts and nuts available under Osculati code 40.142.08.
Key Features
- Precision-cast solid handrail support
- Made from AISI 316 stainless steel
- Available in terminal and central versions
- Suitable for Ø22 mm and Ø25 mm handrail tubes
- Ø30 mm base and 55 mm height for Ø22 mm versions
- Ø35 mm base and 65 mm height for Ø25 mm versions
- Stud size: 8 mm
- Optional stud bolts and nuts: 40.142.08
Available Versions
Code Version Material Base Diameter Height For Pipe Ø Optional Stud Bolts and Nuts Stud Size 41.500.22 Terminal AISI 316 SS Ø30 mm 55 mm Ø22 mm 40.142.08 8 mm 41.500.25 Terminal AISI 316 SS Ø35 mm 65 mm Ø25 mm 40.142.08 8 mm 41.501.22 Central AISI 316 SS Ø30 mm 55 mm Ø22 mm 40.142.08 8 mm 41.501.25 Central AISI 316 SS Ø35 mm 65 mm Ø25 mm 40.142.08 8 mm
Technical Specifications
Material AISI 316 stainless steel Construction Precision-cast solid Versions Terminal / Central Pipe Diameter Options Ø22 mm / Ø25 mm Base Diameter Ø30 mm / Ø35 mm Height 55 mm / 65 mm Stud Size 8 mm Optional Stud Bolts and Nuts 40.142.08 -
