$ 27.23
1-2 weeks delivery time
Length, mm:
- 219
- 337
- 482
- 632
- 782
- 947
The Osculati oval boat handrail is made from mirror-polished 316 stainless steel with a 19×25 mm section and external screw mounting plates. Available mounting lengths (L) range from 219 to 915 mm, with overall dimensions (L+A) from 251 to 947 mm. Depending on the version, the handrail has 2 or 3 fixing plates and a height of 55, 56 or 65 mm.
- Description
- Ask a Question
-

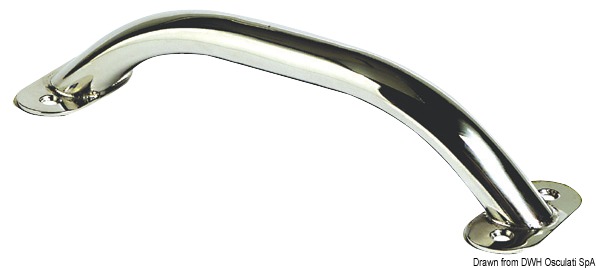

Osculati Oval Boat Handrail with External Screw Mounting – 316 Stainless Steel, 19×25 mm
The Osculati oval boat handrail is manufactured from mirror-polished 316 stainless steel and features a 19×25 mm oval section. It is designed with external screw mounting plates, providing accessible fastening points for installation.
The handrail is available in six sizes, with mounting length (L) from 219 to 915 mm and overall length (L+A) from 251 to 947 mm. Depending on the selected size, the handrail is equipped with two or three fixing plates.
Key Features
- Mirror-polished 316 stainless steel construction
- Oval section: 19×25 mm
- External screw mounting
- 2 or 3 fixing plates depending on version
- Mounting length (L): 219 to 915 mm
- Overall dimension (L+A): 251 to 947 mm
- Available heights: 55, 56 and 65 mm
Available Versions
Article No. Length (L) Overall Length (L+A) Height Fixing Plates 41.911.09 219 mm 251 mm 56 mm 2 41.911.12 305 mm 337 mm 55 mm 2 41.911.18 450 mm 482 mm 65 mm 2 41.911.24 600 mm 632 mm 65 mm 2 41.911.30 750 mm 782 mm 65 mm 3 41.911.36 915 mm 947 mm 65 mm 3
Technical Specifications
Material 316 stainless steel Finish Mirror-polished Section Oval, 19×25 mm Mounting External screw mounting Fixing Plates 2 or 3 depending on version -
