$ 120.50
1-2 weeks delivery time
Length, mm:
- 610
- 750
The Vetus STANCH tapered boat stanchions are manufactured from AISI 316 stainless steel with a Ø25 mm base diameter and two wire holes for railing wire up to Ø9.5 mm. Two versions are available: STANCH61 with a 610 mm height and 305 mm C-C spacing, and STANCH75 with a 750 mm height and 360 mm C-C spacing. Both models have D1 and D2 dimensions of 10.1 mm and D3 of 8 mm, are supplied without sockets, and are suitable for Vetus STANCHPR and STANCHPS sockets.
- Description
- Ask a Question
-

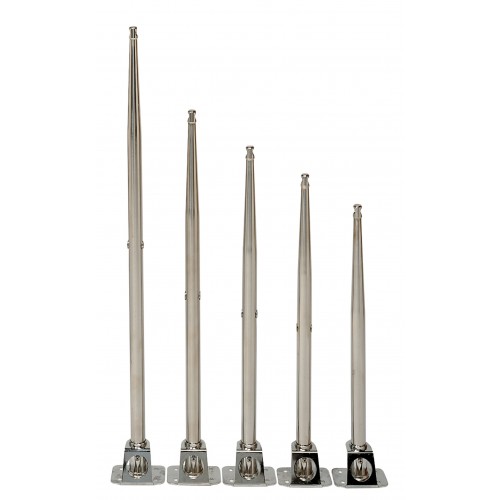

Vetus STANCH Tapered Boat Stanchions Ø25 mm, AISI 316 Stainless Steel – 610 / 750 mm
The Vetus STANCH series consists of tapered boat stanchions manufactured from AISI 316 stainless steel for marine railing installations. Each stanchion has a Ø25 mm base diameter and is equipped with two wire holes.
The stanchions are suitable for railing wire with a maximum diameter of 9.5 mm. Two sizes are available: STANCH61 with a height of 610 mm and STANCH75 with a height of 750 mm. The stanchions are supplied without sockets and are suitable for use with Vetus STANCHPR and STANCHPS sockets.
Key Features
- Manufactured from AISI 316 stainless steel
- Tapered stanchion design
- Base diameter: Ø25 mm
- Two wire holes
- Maximum railing wire diameter: Ø9.5 mm
- Available in 610 mm and 750 mm heights
- Supplied without sockets
- Suitable for Vetus STANCHPR and STANCHPS sockets
Available Versions
Type Overall Length Height C-C D1 D2 D3 Hole Spacing STANCH61 619 mm 610 mm 305 mm 10.1 mm 10.1 mm 8 mm 2 wire holes at 305 / 610 mm STANCH75 759 mm 750 mm 360 mm 10.1 mm 10.1 mm 8 mm 2 wire holes at 360 / 750 mm
Technical Specifications
Material AISI 316 stainless steel Design Tapered Base Diameter Ø25 mm Number of Wire Holes 2 Maximum Railing Wire Diameter Ø9.5 mm Supplied with Sockets No Compatible Sockets Vetus STANCHPR / STANCHPS -
