$ 24.84
1-2 weeks delivery time
-
+
The Osculati 41.104.00 streamlined grab handle is made of mirror-polished AISI 316 stainless steel. It measures 185 mm in overall length and 29 mm in height, with a 135 mm mounting centre distance shown in the technical drawing. The handle uses M6 mounting points and can be fitted with optional Osculati 40.142.06 Ø6 mm studs.
- Description
- Ask a Question
-
Osculati 41.104.00 Streamlined AISI 316 Stainless Steel Grab Handle, 185 mm

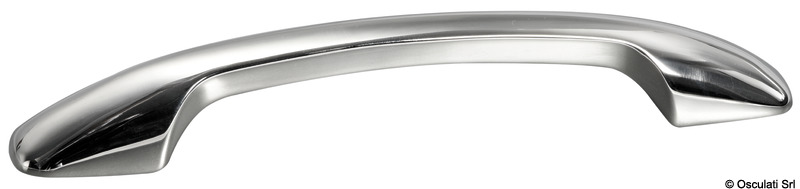

The Osculati 41.104.00 is a streamlined grab handle manufactured from mirror-polished AISI 316 stainless steel. Its compact profile combines an overall length of 185 mm with a height of 29 mm.

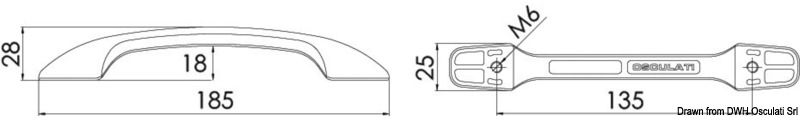

The technical drawing indicates a 135 mm mounting centre distance and M6 mounting points. Optional Osculati 40.142.06 studs with a diameter of 6 mm are available for installation.
Technical Specifications
Manufacturer Osculati Article Number 41.104.00 Product Type Streamlined grab handle Material AISI 316 stainless steel Finish Mirror-polished Length 185 mm Height 29 mm Mounting Centre Distance 135 mm Mounting Thread M6 Optional Studs Osculati 40.142.06 (Ø6 mm)
Key Features
- Streamlined handle design
- Made of mirror-polished AISI 316 stainless steel
- 185 mm overall length
- 29 mm height
- 135 mm mounting centre distance
- M6 mounting points
- Compatible with optional Osculati 40.142.06 Ø6 mm studs
-
