$ 46.68
1-2 weeks delivery time
Diameter, mm:
- 25x1.5
- 30x2
Size:
- 45
- 60
- 75

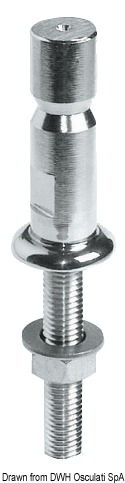

The Osculati compact male stanchion base is made of polished AISI 316 stainless steel and is designed for installation inside the stanchion with nut mounting. Three versions are available for Ø25x1.5 mm and Ø30x2 mm stanchions, with threaded mounting shank lengths of 45 mm, 60 mm or 75 mm. Depending on the version, the bases are recommended for Osculati stanchions 41.176.11, 41.177.01 or 41.177.02.
- Description
- Ask a Question
-
Osculati Compact AISI 316 Male Stanchion Base for Ø25x1.5–30x2 mm Stanchions
The Osculati compact male stanchion base is manufactured from polished AISI 316 stainless steel and is designed to fit inside the stanchion. The base is secured using a threaded mounting shank and nut.
The range includes versions for Ø25x1.5 mm and Ø30x2 mm stanchions. The available models differ in stanchion compatibility and threaded mounting shank length.
Available Versions
Osculati Article For Stanchion Threaded Shank Length (A) Mounting Recommended For 41.173.25 Ø25x1.5 mm 75 mm Nut mounting 41.176.11 41.173.26 Ø25x1.5 mm 45 mm Nut mounting 41.176.11 41.173.30 Ø30x2 mm 60 mm Nut mounting 41.177.01; 41.177.02
Technical Features
- Product type: Compact male stanchion base
- Material: AISI 316 stainless steel
- Finish: Polished
- Installation: Inside the stanchion
- Mounting: Threaded shank with nut
- Compatible stanchion sizes: Ø25x1.5 mm and Ø30x2 mm
- Available threaded shank lengths: 45 mm, 60 mm and 75 mm
- Recommended stanchions: 41.176.11, 41.177.01 and 41.177.02 depending on version
-
