ID
1396329
$ 42.40
1-2 weeks delivery time
Type:
- Central Hole
- AISI Head
Length, mm:
- 465
- 620
- 625
- 715
- 720

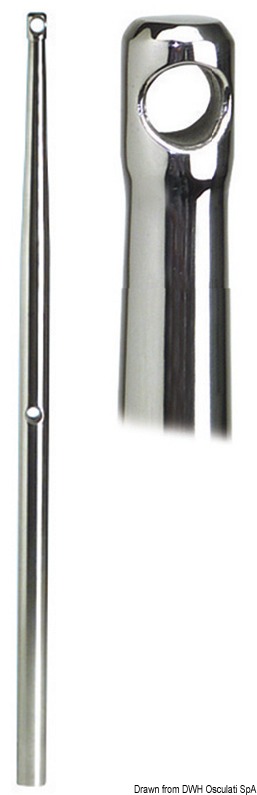

The Osculati stanchion for female bases is made of mirror-polished AISI 316 stainless steel with a Ø25 mm tube, stainless steel head and central hole with stainless steel pipe. Six versions are available with dimension A ranging from 465 to 720 mm. Depending on the article, F1 hole diameter is 10.4 or 10.5 mm and F2 hole diameter is 12.8 or 10.2 mm.
- Description
- Ask a Question
-
Osculati AISI 316 Stainless Steel Stanchion for Female Bases, Ø25 mm, 465–720 mm
The Osculati stanchion range is designed for female bases and is manufactured from mirror-polished AISI 316 stainless steel. Each version uses a Ø25 mm tube and features a stainless steel head with a central hole and stainless steel pipe.
Six versions are available with different A, B and C dimensions and different F1 and F2 hole diameters.
Available Versions
Osculati Article Ø A B C F1 Ø F2 Ø 41.174.39 25 mm 465 mm 455 mm 197 mm 10.4 mm 12.8 mm 41.174.40 25 mm 625 mm 615 mm 315 mm 10.4 mm 12.8 mm 41.174.41 25 mm 715 mm 705 mm 315 mm 10.4 mm 12.8 mm 41.175.01 25 mm 465 mm 454 mm 200 mm 10.5 mm 10.2 mm 41.175.02 25 mm 620 mm 610 mm 310 mm 10.5 mm 10.2 mm 41.175.03 25 mm 720 mm 710 mm 362 mm 10.5 mm 10.2 mm
Technical Features
- Product type: Stanchion for female bases
- Material: AISI 316 stainless steel
- Finish: Mirror-polished
- Tube diameter: Ø25 mm
- Head: Stainless steel
- Central hole: With stainless steel pipe
- Available A dimensions: 465, 620, 625, 715 and 720 mm
- F1 hole diameter: 10.4 or 10.5 mm, depending on version
- F2 hole diameter: 12.8 or 10.2 mm, depending on version
-
