$ 40.35
1-2 weeks delivery time
-
+

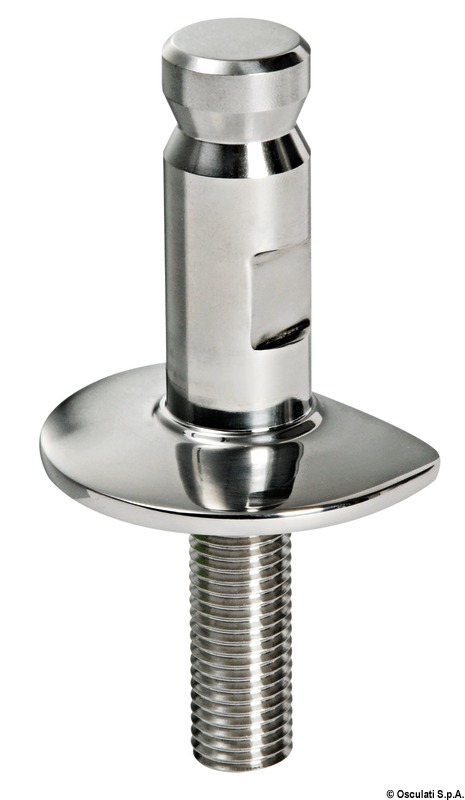

The Osculati 41.173.60 is an oval male stanchion base made of AISI 316 stainless steel and designed for mounting inside Ø25x1.5 mm stanchions. It features a 60x45 mm oval mounting plate, a 45 mm long M16 threaded mounting shank and a Ø21.9 mm upper insertion section. The base is recommended for Osculati stanchions 41.176.11 and 41.176.12.
- Description
- Ask a Question
-
Osculati 41.173.60 Oval AISI 316 Male Stanchion Base for Ø25x1.5 mm Stanchions
The Osculati 41.173.60 is an oval male stanchion base designed for installation inside Ø25x1.5 mm stanchions. The base is made of AISI 316 stainless steel and is intended for use with compatible Osculati stanchions 41.176.11 and 41.176.12.

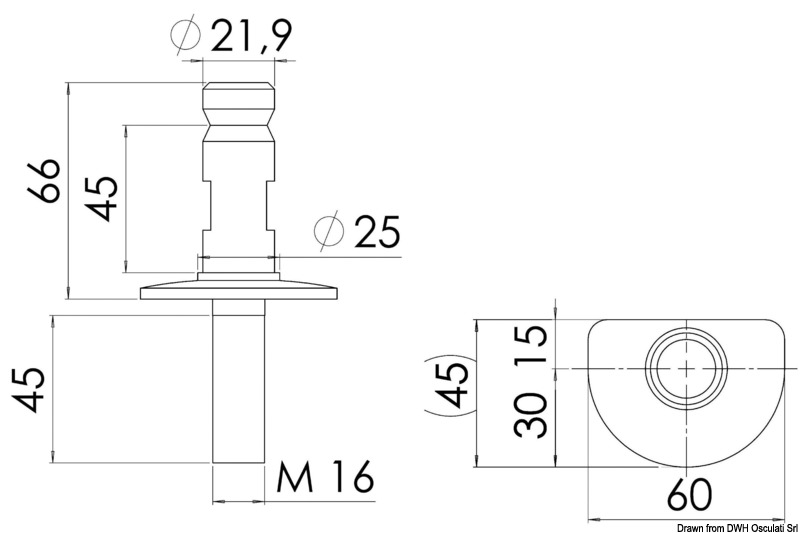

The base features an oval 60x45 mm mounting plate and an M16 threaded mounting shank measuring 45 mm in length. The upper insertion section has a diameter of Ø21.9 mm, while the technical drawing indicates an overall height of 66 mm above the mounting plate.
Technical Specifications
Manufacturer Osculati Article Number 41.173.60 Product Type Oval male stanchion base Material AISI 316 stainless steel For Stanchion Ø25x1.5 mm Upper Insertion Diameter Ø21.9 mm Base Plate Size 60x45 mm Height Above Base Plate 66 mm Thread M16 Threaded Shank Length 45 mm Recommended For 41.176.11; 41.176.12
Key Features
- Oval male stanchion base
- Designed for mounting inside Ø25x1.5 mm stanchions
- Made of AISI 316 stainless steel
- 60x45 mm oval mounting plate
- Ø21.9 mm upper insertion section
- M16 threaded mounting shank
- 45 mm threaded shank length
- Recommended for Osculati stanchions 41.176.11 and 41.176.12
-
